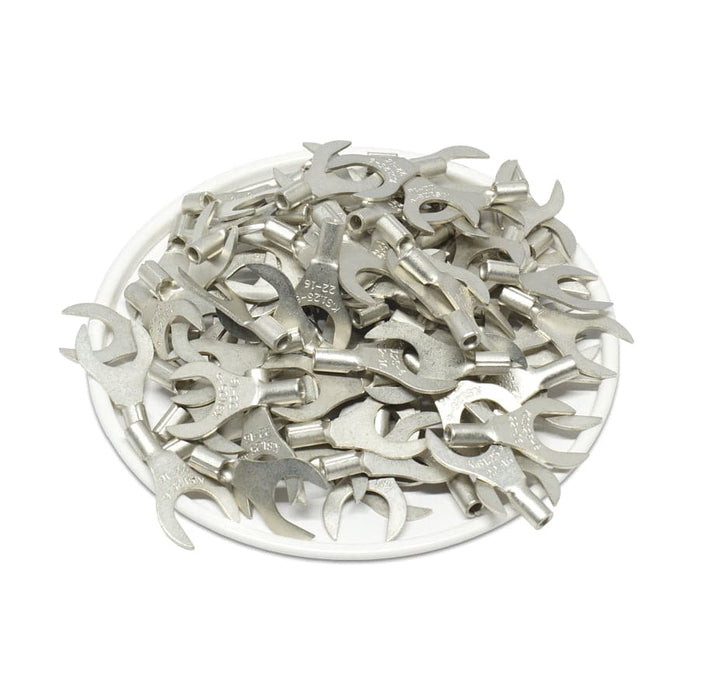

ANB1-6 - Non Insulated Fork Terminals - 22-16 AWG - 1/4" Stud

Original price $15.07 - Original price $15.07
Original price
$15.07
$15.07 - $15.07
Current price $15.07
SKU ANB1-6
Availability:
in stock, ready to be shipped
Piece Quantity: 100 Pieces

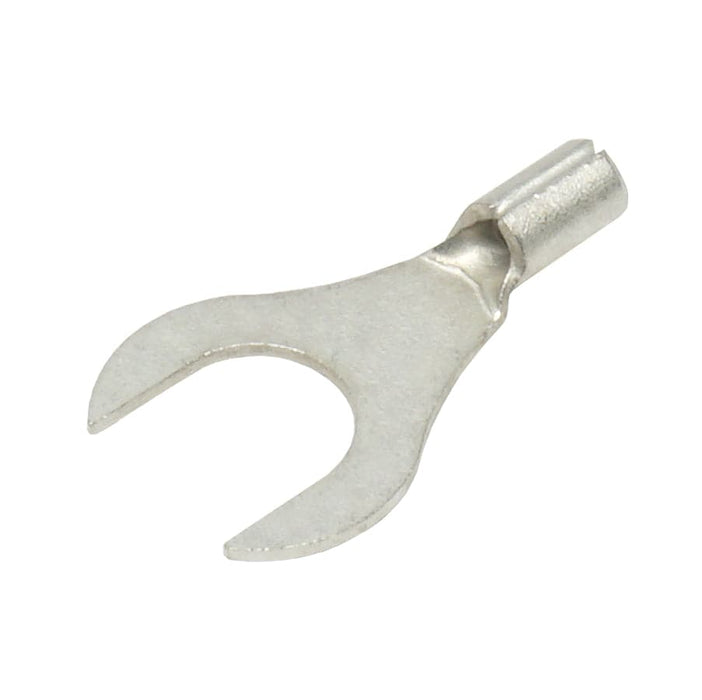

Fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength.

Dimensions & Features:

Wire Size: 22-16 AWG
Stud Size: 1/4" Stud
D2: 6.4mm (0.25")
W: 11.6mm (0.46")
F: 11mm (0.43")
L: 20.3mm (0.80")
E: 4.8mm (0.19")
D: 3.4mm (0.13")
D1: 1.7mm (0.07")
T: 0.75mm (0.03")
Material: Tin Plated Copper
Seam: Brazed
Electrical Rating: 105°C - 600 Volts
Electrical Current: 18 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
