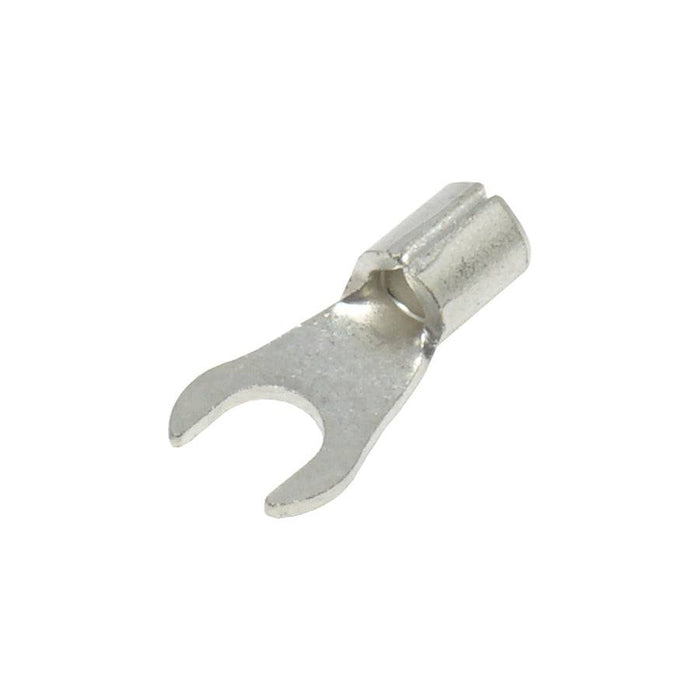

16-14 AWG Non Insulated Fork Terminals, #6 Stud, UL Approved, 100 Pieces - ANB2-37
Original price
$11.75
-
Original price
$11.75
Original price
$11.75
$11.75
-
$11.75
Current price
$11.75
SKU ANB2-37
Availability:
in stock, ready to be shipped
NON INSULATED FORK TERMINALS
Fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength.
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Stud Size: | #6 Stud |
| D2: | 3.7mm (0.15") |
| W: | 6.6mm (0.26") |
| F: | 6.3mm (0.25") |
| L: | 13.5mm (0.53") |
| E: | 4.8mm (0.19") |
| D: | 4.1mm (0.16") |
| D1: | 2.3mm (0.09") |
| T: | 0.8mm (0.03") |
| Material: | Tin Plated Copper |
| Seam: | Brazed |
| Electrical Rating: | 105°C - 600 Volts |
| Electrical Current: | 30 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
