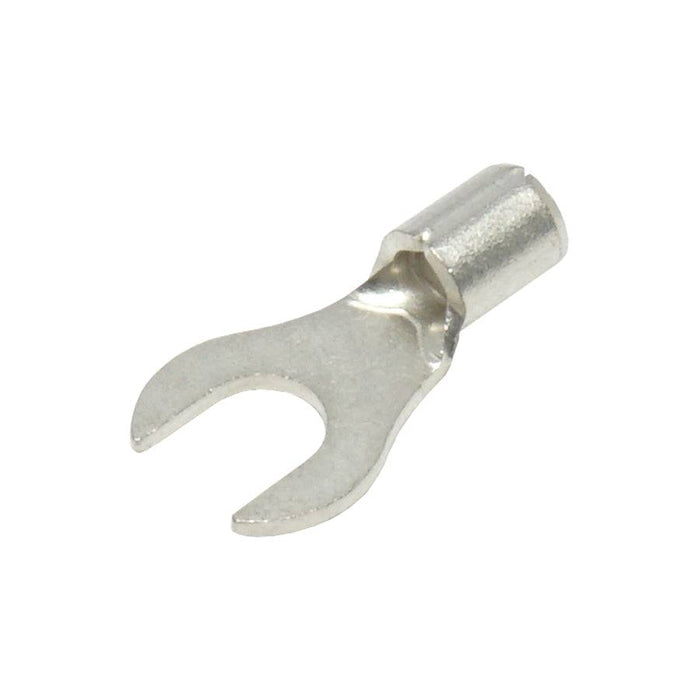

ANB2-4 - Non Insulated Fork Terminals - 16-14 AWG - #8 Stud

Original price $13.04 - Original price $13.04
Original price
$13.04
$13.04 - $13.04
Current price $13.04
SKU ANB2-4
Availability:
in stock, ready to be shipped
Piece Quantity: 100 Pieces
Fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength.

Dimensions & Features:

Wire Size: 16-14 AWG
Stud Size: #8 Stud
D2: 4.3mm (0.17")
W: 8.5mm (0.34")
F: 6.9mm (0.31")
L: 15.9mm (0.63")
E: 4.8mm (0.19")
D: 4.1mm (0.16")
D1: 2.3mm (0.09")
T: 0.8mm (0.03")
Material: Tin Plated Copper
Seam: Brazed
Electrical Rating: 105°C - 600 Volts
Electrical Current: 30 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
