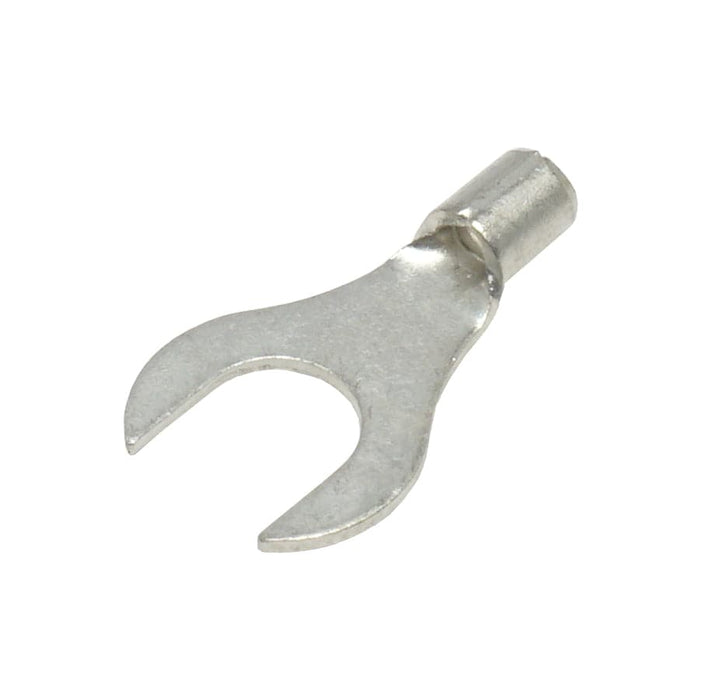

16-14 AWG Non Insulated Fork Terminals, 1/4" Stud, UL Approved, 100 Pieces - ANB2-6

Original price $18.28 - Original price $18.28
Original price
$18.28
$18.28 - $18.28
Current price $18.28
SKU ANB2-6
Availability:
in stock, ready to be shipped
Piece Quantity: 100 Pieces

NON INSULATED FORK TERMINALS

Fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength.


Dimensions & Features:

Wire Size: 16-14 AWG
Stud Size: 1/4" Stud
D2: 6.4mm (0.25")
W: 12mm (0.47")
F: 11mm (0.43")
L: 20.5mm (0.81")
E: 4.8mm (0.19")
D: 4.1mm (0.16")
D1: 2.3mm (0.09")
T: 0.8mm (0.03")
Material: Tin Plated Copper
Seam: Brazed
Electrical Rating: 105°C - 600 Volts
Electrical Current: 30 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
