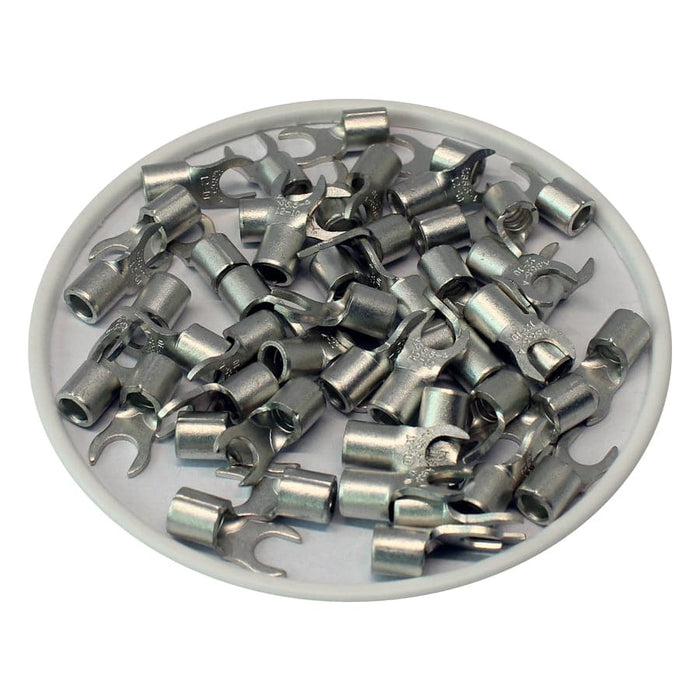

ANB5-4 - Non Insulated Fork Terminals - 12-10 AWG - #8 Stud

Original price $8.63 - Original price $8.63
Original price
$8.63
$8.63 - $8.63
Current price $8.63
SKU ANB5-4
Availability:
in stock, ready to be shipped
Piece Quantity: 50 Pieces
Fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength.

Dimensions & Features:

Wire Size: 12-10 AWG
Stud Size: #8 Stud
D2: 4.3mm (0.17")
W: 7.2mm (0.28")
F: 5.8mm (0.523")
L: 14.3mm (0.56")
E: 6.0mm (0.24")
D: 5.6mm (0.22")
D1: 3.4mm (0.13")
T: 1.0mm (0.04")
Material: Tin Plated Copper
Seam: Brazed
Electrical Rating: 105°C - 600 Volts
Electrical Current: 50 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
