AP1013 - Adjustable Cable Clamps - 1.25 x 0.75 x 1.09"
Original price
$9.40
-
Original price
$9.40
Original price
$9.40
$9.40
-
$9.40
Current price
$9.40
SKU AP1013
Availability:
in stock, ready to be shipped

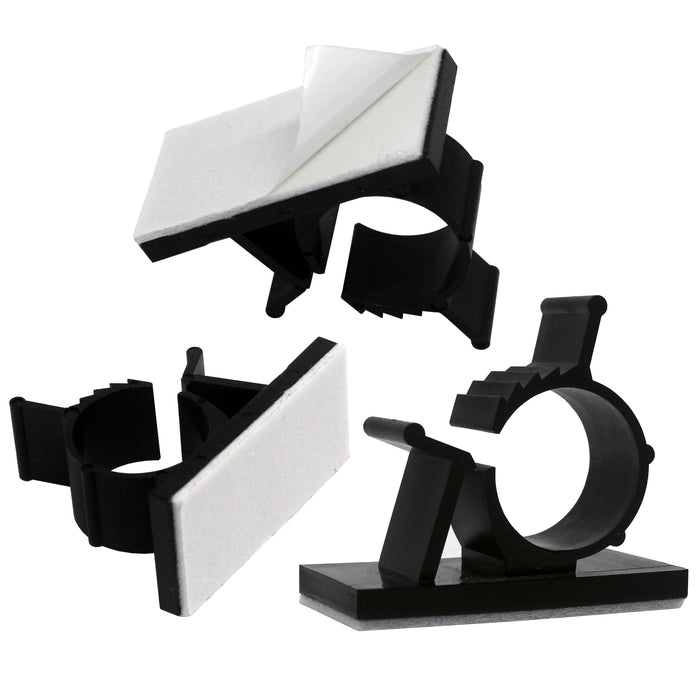

Adjustable, self-adhesive cable clamps are designed to secure wire bundles and large cables where fixing holes prove impractical. Two stage lock design can accommodate various cable sizes. To install, make sure the surface where the clamp is to be applied is clean and oil-free. Remove the adhesive's protective film and apply cable clamp to the surface.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
Size: | 1.25 x 0.75 x 1.09" |
Color: | Black |
A: | 0.39 ~ 0.49" (10.0 ~ 12.5mm) |
B: | 1.25" (31.8mm) |
C: | 1.09" (27.8mm) |
D: | 0.75" (19.1mm) |
E: | 0.06" (1.6mm) |
F: | 0.40" (10.2mm) |
Material: | UL Approved 94UV-2 Nylon 6/6 |
Flammability: | V-2 |
Gamma Resistance: | 1x10 Rads |
Service Temperature: | -40°F to 185°F (-40°C to 85°C) |
UL Approved: | No |
RoHS Compliant: | Yes |
CE Certified: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
