BCL4014 - 4/0 AWG One-Hole Battery Lug - 1/4" Stud Size
Original price
$3.70
-
Original price
$3.70
Original price
$3.70
$3.70
-
$3.70
Current price
$3.70
SKU BCL4014
Availability:
in stock, ready to be shipped

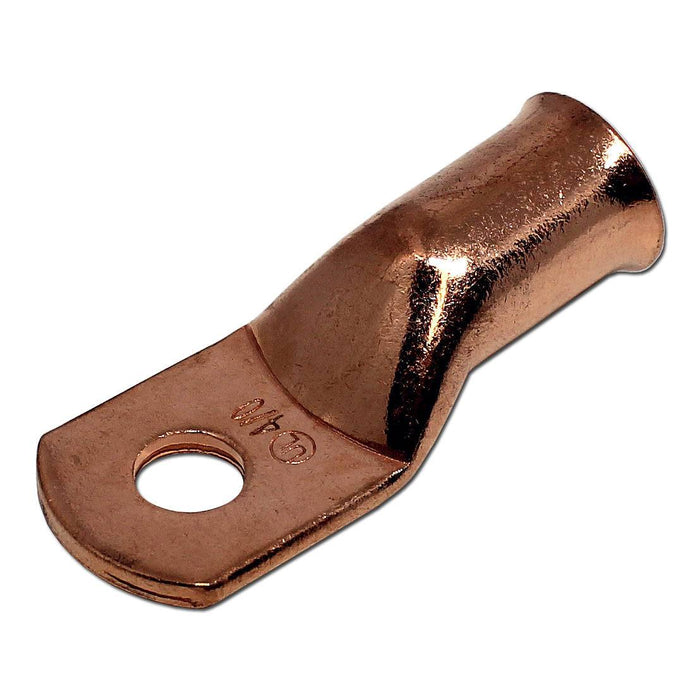

COPPER BATTERY CABLE LUGS
Our Copper Lugs are suitable for use with a variety of wire types, such as battery and welding cable. Made from 100% pure copper for superior conductivity. Closed-type Flared ends for easy wire insertion that are crimpable and solderable.
- 100% Pure Copper ✓
- Thick & Durable ✓
- UL Approved ✓
- RoHS & REACH Compliant ✓
- CE Certified ✓
DIMENSIONS & FEATURES:
Wire Size: | 4/0 AWG |
L: | 61.2mm (2.41") |
L1: |
13.7mm (0.54") |
D: | 25.8mm (1.02") |
D1: | 17.4mm (0.69") |
D2: | 14.2mm (0.56") |
B: | 19.1mm (0.75") |
E: | 6.6mm (0.26") |
F: | 2.5mm (0.10") |
Terminal Material: | Copper |
Stud Size: | 1/4" |
Temperature Rating: |
90°C |
Voltage Rating: | 35KV |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |

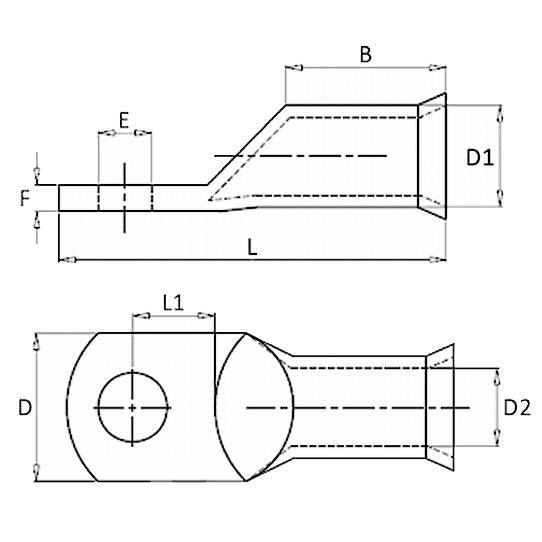

DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
