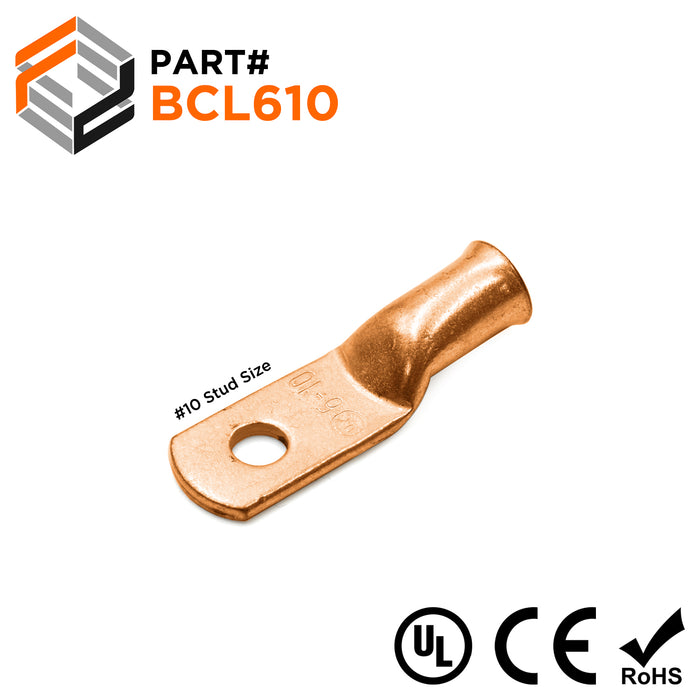

6 AWG Copper Battery Cable Lugs, Terminal Lugs, #10 Stud, 1 Piece - BCL610
Original price
$0.66
-
Original price
$0.66
Original price
$0.66
$0.66
-
$0.66
Current price
$0.66
SKU BCL610
Availability:
in stock, ready to be shipped

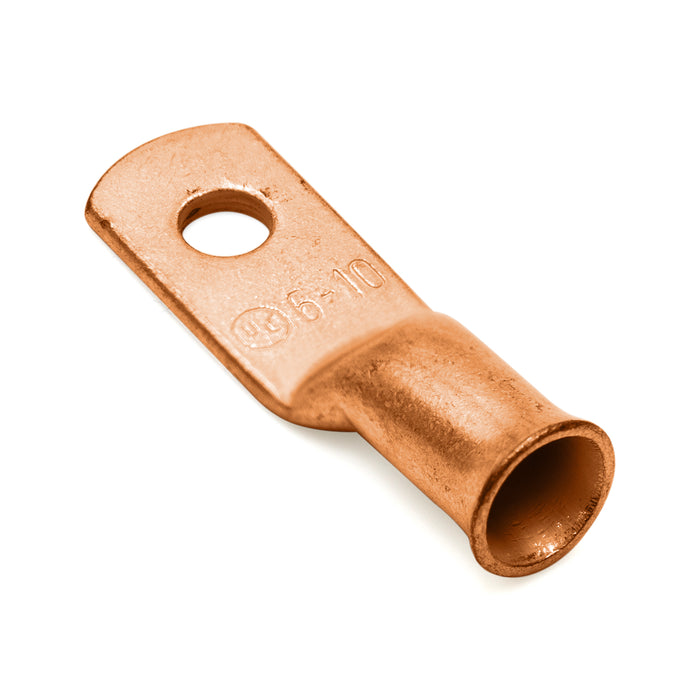

COPPER BATTERY CABLE LUGS
Our Copper Lugs are suitable for use with a variety of wire types, such as battery and welding cable. Made from 100% pure copper for superior conductivity. Closed-type Flared ends for easy wire insertion that are crimpable and solderable.
- 100% Pure Copper ✓
- Thick & Durable ✓
- UL Approved ✓
- RoHS & REACH Compliant ✓
- CE Certified ✓
DIMENSIONS & FEATURES:
| Wire Size: | 6 AWG |
| L: | 37.3mm (1.47") |
| L1: | 9.9mm (0.39") |
| D: | 11.8mm (0.47") |
| D1: | 7.9mm (0.31") |
| D2: | 5.9mm (0.23") |
| B: | 12.7mm (0.50") |
| E: | 5.1mm (0.20") |
| F: | 1.5mm (0.07") |
| Terminal Material: | Copper |
| Stud Size: | #10 |
| Temperature Rating: |
90°C |
| Voltage Rating: | 35KV |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
