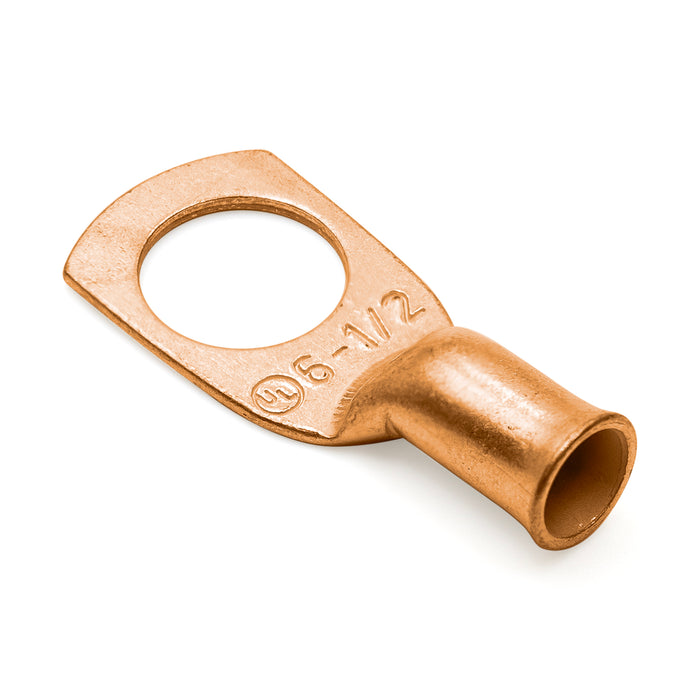

BCL612 - 6 AWG One-Hole Battery Lug - 1/2" Stud Size

Original price $0.59 - Original price $0.59
Original price
$0.59
$0.59 - $0.59
Current price $0.59
SKU BCL612
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
Tubular copper battery lugs widely used in the electrical wire connecting area such as home appliances, mechanical equipment factory, power distribution cabinet, etc. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 6 AWG
L: 40.1mm (1.57")
L1: 9.7mm (0.38")
D: 17.4mm (0.68")
D1: 8.0mm (0.31")
D2: 6.0mm (0.23")
B: 12.3mm (0.48")
E: 13mm (0.51")
F: 1.2mm (0.05")
Terminal Material: Copper
Stud Size: 1/2"
Temperature Rating: 90°C
Voltage Rating: 35KV
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes
