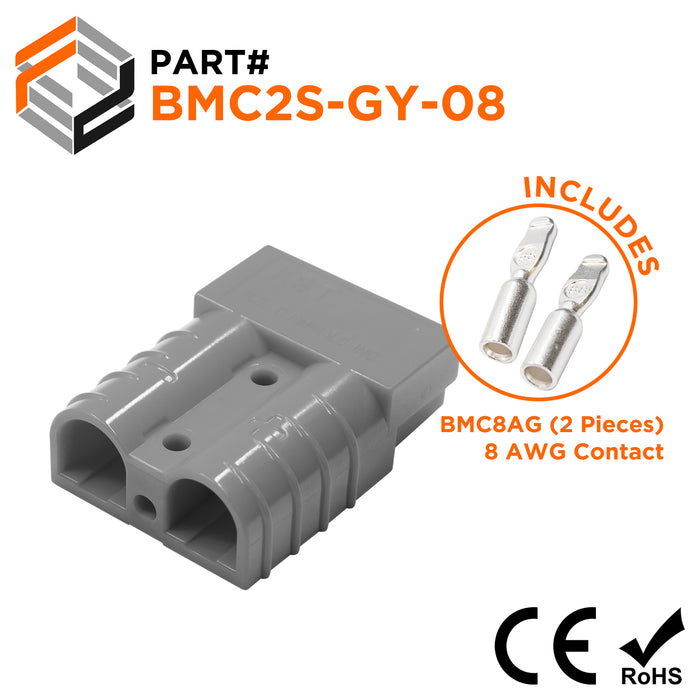

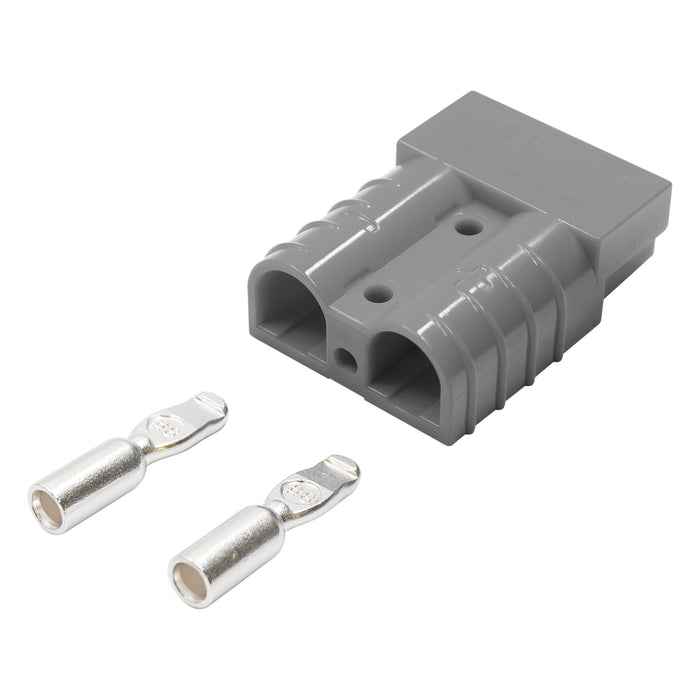

BMCS-GY-08 - Battery Connection Kit - Includes BMC2S-GY + BMC8AG (2 Pieces)
Original price
$3.40
-
Original price
$3.40
Original price
$3.40
$3.40
-
$3.40
Current price
$3.40
SKU BMCS-GY-08
Battery connector kits are essential components for establishing secure and efficient electrical connections between batteries and various electrical systems or devices. The most common application is in automation, connecting a battery to a vehicle's electrical system.
BMCS-GY Dimensions & Features:
| Wire Range: | 16-06 AWG |
| Color | Gray |
| L | 1.9" (49mm) |
| W: | 1.4" (34.9mm) |
| H: | 0.63" (15.9mm) |
| Spring Material: | Stainless Steel |
| Housing Material: | Polycarbonate (PC) |
| Temperature Range: | -20°C to 75°C |
| AMP Rating: | 50AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
BMC8AG Dimensions & Features:
| Wire Range: | 8 AWG |
| L | 1.19" (30.3mm) |
| E | 0.47" (12.0mm) |
| D1: | 0.19" (4.9mm) |
| D: | 0.28" (7.04mm) |
| Terminal Material: | Copper |
| Terminal Plating: | Silver |
| Current Rating: | 70AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
