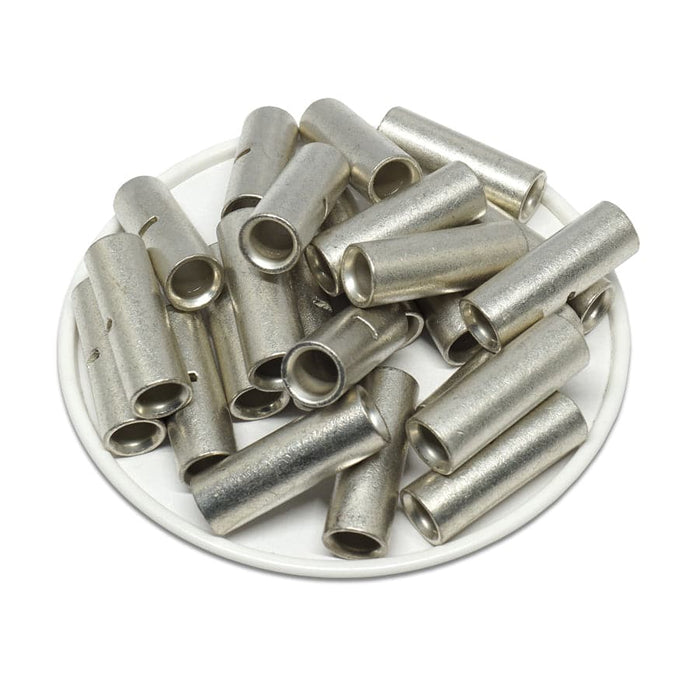

6 AWG Non Insulated Butt Splice Connectors, 1" Length, UL Approved, 25 Pieces - BNT14

Original price $44.10 - Original price $44.10
Original price
$44.10
$44.10 - $44.10
Current price $44.10
SKU BNT14
Availability:
in stock, ready to be shipped
Pack Quantity: 25 Pieces

NON INSULATED BUTT SPLICE CONNECTORS

Non Insulated butt splice connectors protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively. For use with copper wires only.
Dimensions & Features:

Wire Size: 6 AWG

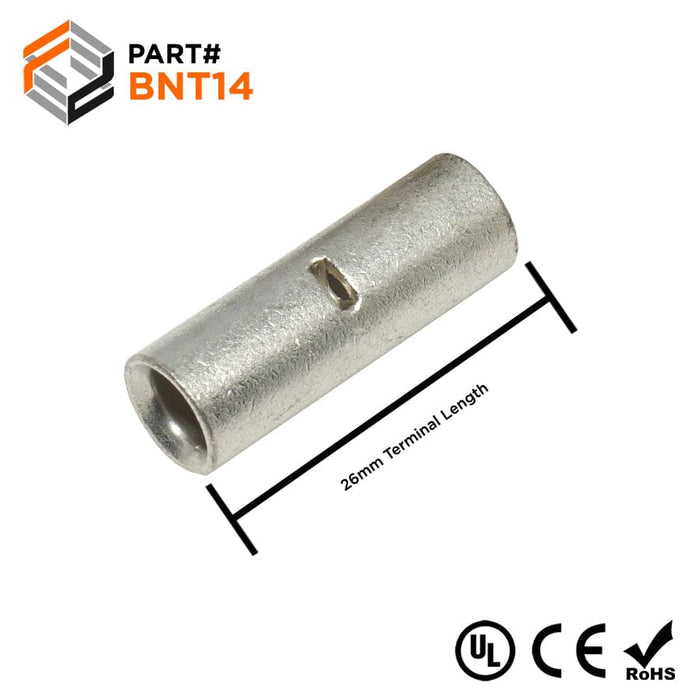

L: 26mm (1.02")
D:
8.9mm (0.35")
D1: 5.9mm (0.23")
Barrel: Seamless
Configuration: Straight
Material: Tin Plated Copper
Max Electrical Current: 95 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:


Cross References

Cross Reference Parts:
Burndy: YSV6C-L
Elecdirect: B7F
Tyco AMP: 34322
Weidmuller: 1493040000
