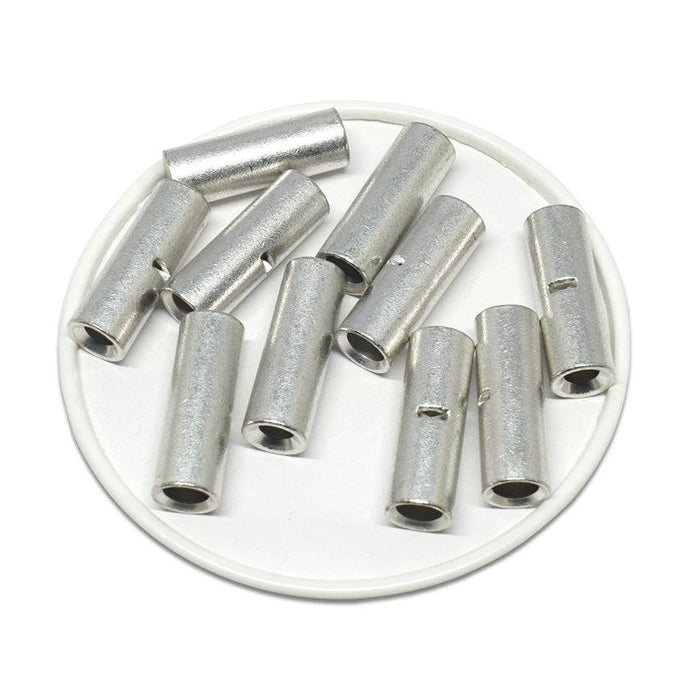

BNT14CD8 - Non Insulated Step Down Butt Connector - 6 AWG to 8 AWG
Original price
$11.82
-
Original price
$11.82
Original price
$11.82
$11.82
-
$11.82
Current price
$11.82
SKU BNT14CD8
Availability:
in stock, ready to be shipped
Non Insulated butt splice connectors protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively, For use with copper wires only.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 6 AWG to 8 AWG |

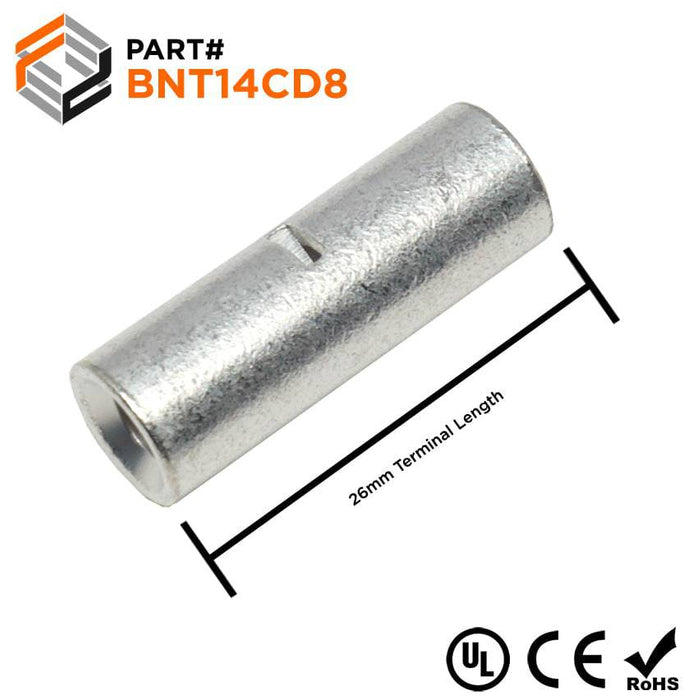

| L: | 26mm (1.02") |
| D: |
8.9mm (0.35") |
| D1: | 4.6mm (0.18") |
| D2: | 5.9mm (0.23") |
| Barrel: | Seamless |
| Configuration: | Straight |
| Material: | Tin Plated Copper |
| Max Electrical Current: | 70 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
