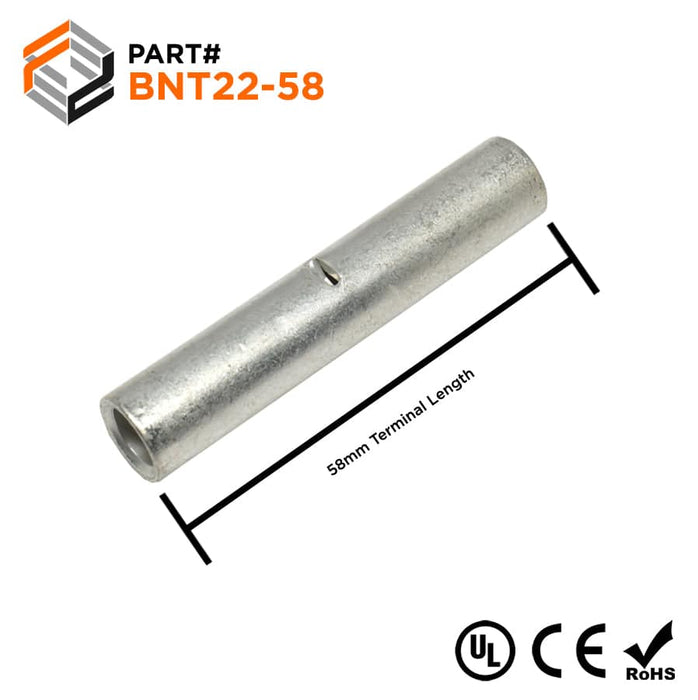

4 AWG Non Insulated Butt Splice Connectors, 2 1/4" Length, UL Approved, 10 Pieces - BNT22-58
Sold out
Original price
$28.92
-
Original price
$28.92
Original price
$28.92
$28.92
-
$28.92
Current price
$28.92
SKU BNT22-58
Availability:
Out of stock
NON INSULATED BUTT SPLICE CONNECTORS
Non Insulated butt splice connectors protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively. For use with copper wires only.
Dimensions & Features:
| Wire Size: | 4 AWG |
| L: | 58mm (2.28") |
| D: |
11.3mm (0.45") |
| D1: | 7.8mm (0.31") |
| Barrel: | Seamless |
| Configuration: | Straight |
| Material: | Tin Plated Copper |
| Max Electrical Current: | 125 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Burndy: YSV4C-L
Elecdirect: B7G
Tyco AMP: 34323
Weidmuller: 1493050000
