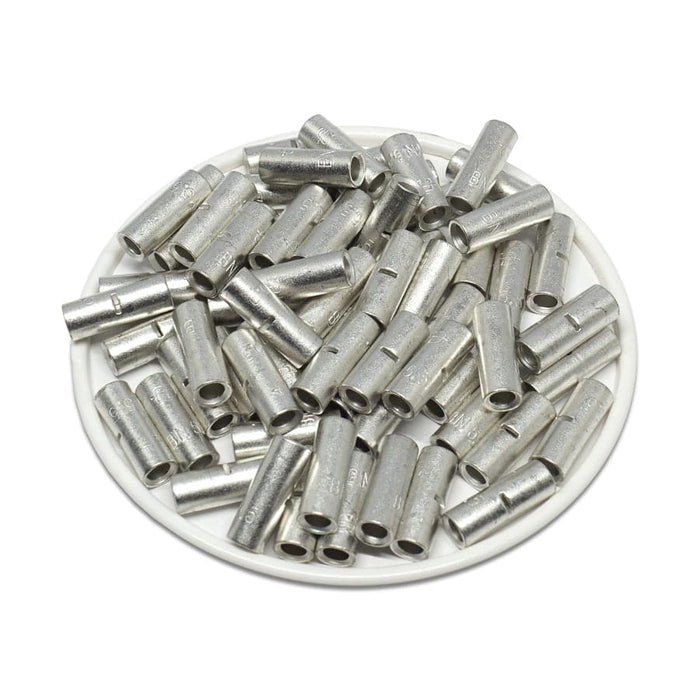

BNT5 - Non Insulated Butt Splice Connector - 12-10AWG
Original price
$17.02
-
Original price
$17.02
Original price
$17.02
$17.02
-
$17.02
Current price
$17.02
SKU BNT5
Availability:
in stock, ready to be shipped
Non Insulated butt splice connectors protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively, For use with copper wires only.
Dimensions & Features:
Product Drawing:
3M: M10BCX
Burndy: YSV10
Elecdirect: B7C
Panduit: BS10-L
Thomas Betts: 2C-10
Tyco AMP: 32151
Weidmuller: 1493020000
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| L: | 15mm (0.59") |
| D: |
5.4mm (0.21") |
| D1: | 3.4mm (0.13") |
| Barrel: | Seamless |
| Configuration: | Straight |
| Material: | Tin Plated Copper |
| Max Electrical Current: | 50 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:3M: M10BCX
Burndy: YSV10
Elecdirect: B7C
Panduit: BS10-L
Thomas Betts: 2C-10
Tyco AMP: 32151
Weidmuller: 1493020000
