BNT5CD2 - 12-10 to 16-14AWG Non Insulated Step Down Butt Connector
Original price
$11.75
-
Original price
$11.75
Original price
$11.75
$11.75
-
$11.75
Current price
$11.75
SKU BNT5CD2
Availability:
in stock, ready to be shipped

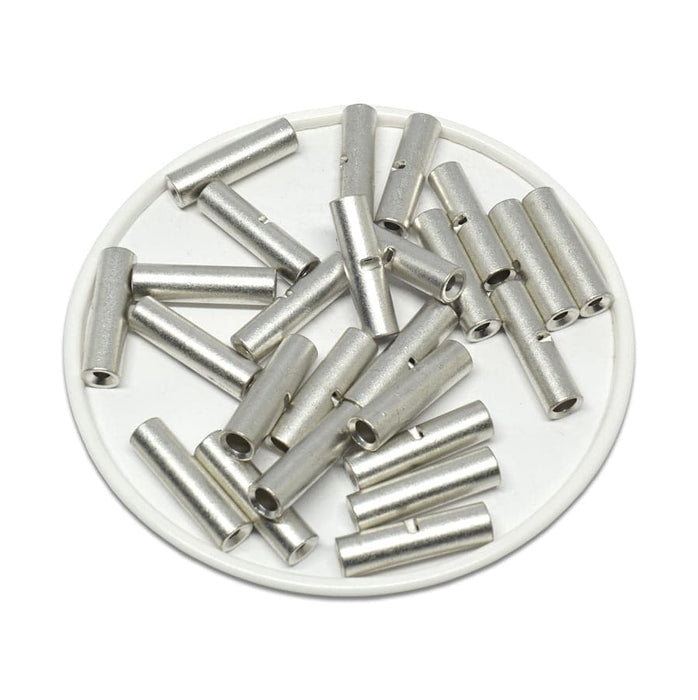

Non insulated step down butt connectors are used to terminate or mate two wires of different size. They offer the following advantages: reliable wire termination due to uniform wall thickness all along the connector and clearly visible color-coding stripe on connector enables the user to quickly identify the connector's size..
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG to 16-14 AWG |

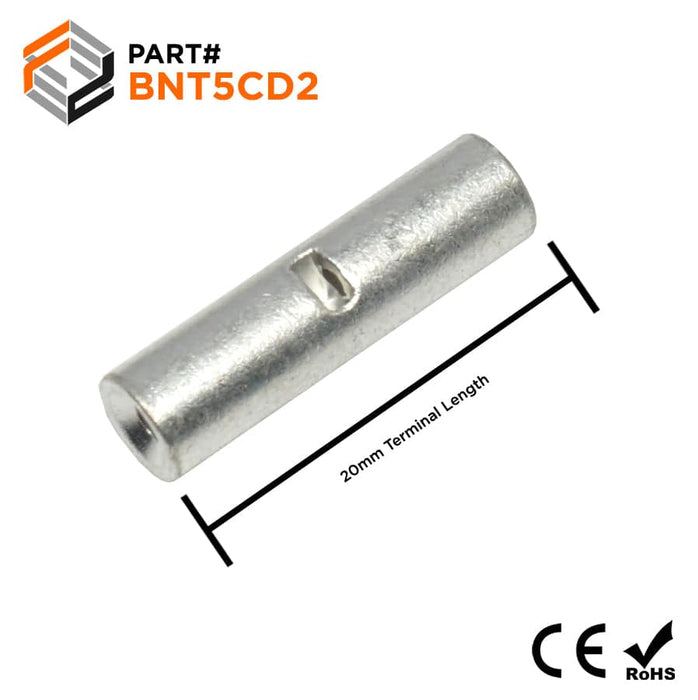

| L: | 20mm (0.79") |
| D: | 5.4mm (0.21") |
| D1: |
2.3mm (0.09") |
| D2: | 3.5mm (0.14") |
| Material: | Tin-Plated Copper |
| Configuration: | Straight |
| Maximum Electrical Rating: | 75o(167oF) - 600 Volts |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
