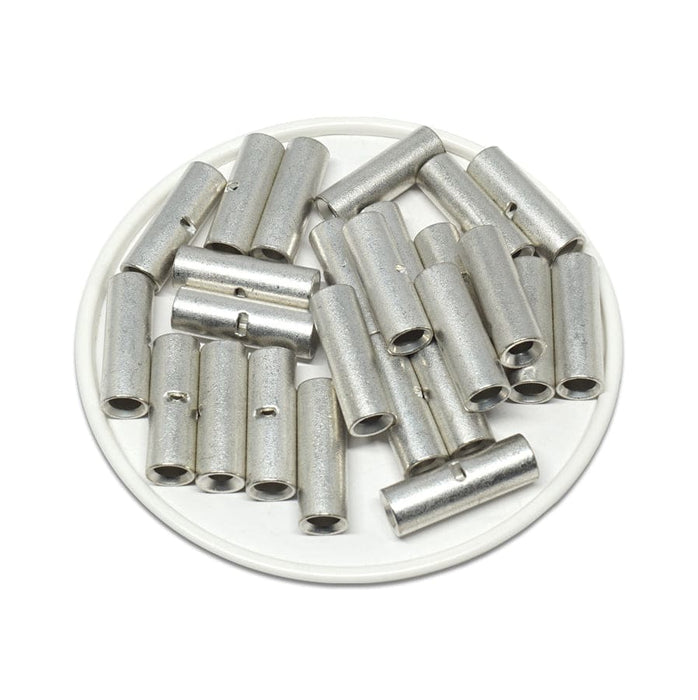

BNT8CD5 - 8 to 12-10AWG Non Insulated Step Down Butt Connector

$16.64
SKU BNT8CD5
Piece Quantity
Non insulated step down butt connectors are used to terminate or mate two wires of different size. They offer the following advantages: reliable wire termination due to uniform wall thickness all along the connector and clearly visible color-coding stripe on connector enables the user to quickly identify the connector's size..

Dimensions & Features:

Wire Size: 8 AWG to 16-14 AWG
L: 21mm (0.83")
D: 7mm (0.06")
D1:
3.5mm (0.14")
D2: 4.6mm (0.18")
Material: Tin-Plated Copper
Configuration: Straight
Maximum Electrical Rating: 75o(167oF) - 600 Volts
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
