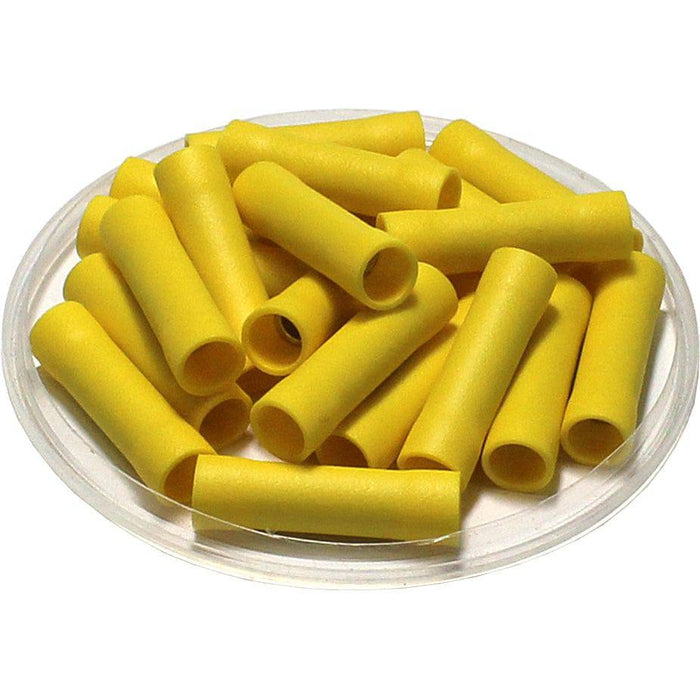

BVT5 - Vinyl Insulated Butt Splice Connector - 12-10 AWG

Pack Quantity
Insulated butt splice connectors insulate and protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively.

Dimensions & Features:

Wire Size: 12-10 AWG
Color: Yellow
L: 26mm (1.02")
6.3mm (0.25")
D1: 3.4mm (0.13")
Barrel: Butted Seam
Configuration: Flared
Material: Tin Plated Copper
Insulation: Vinyl
Max Electrical Rating: 75°C - 600 Volts
Max Electrical Current: 50 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
Burndy: SP10
