MPGamma SDN404015 - Stainless Steel Electrical Junction Box, Size: 16" x 16" x 6", 304 Stainless Steel, UL Listed
Save 75%
Original price
$329.20
Original price
$329.20
-
Original price
$329.20
Original price
$329.20
Current price
$82.29
$82.29
-
$82.29
Current price
$82.29
SKU SDN404015
CLOSEOUT - SALES ARE FINAL
Not Eligible For Free Shipping Promotion
Availability:
Low stock

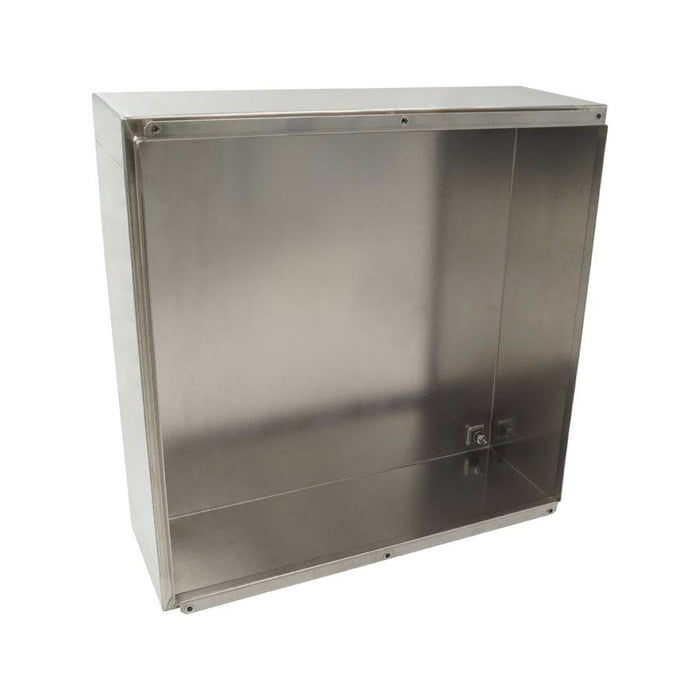

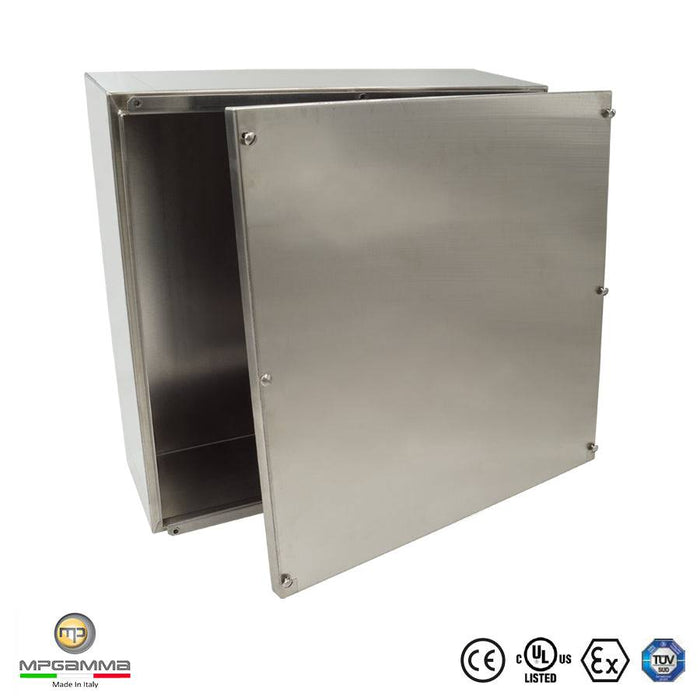

WATERTIGHT STAINLESS STEEL JUNCTION BOXES
***THIS ITEM MUST SHIP VIA MOTOR FREIGHT DUE TO SIZE. CONTACT US TODAY FOR A HASSLE FREE SHIPPING ESTIMATE***
SDN SERIES:
- Watertight boxes made in AISI 304L (Wnr 1.4307) stainless steel.
- Fine external SATIN finish, medium Scotch-Brite type.

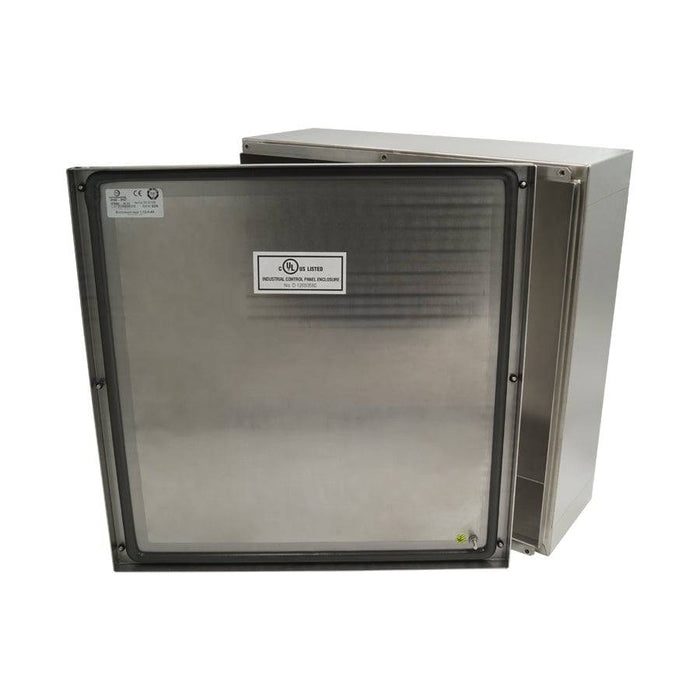

- Cover screwed to the box body with leak-proof clamping screws.
- Sheet metal thickness values of the body and cover from 10/10mm to 12/10mm depending on the size.
- Polyurethane seal with robotized application.

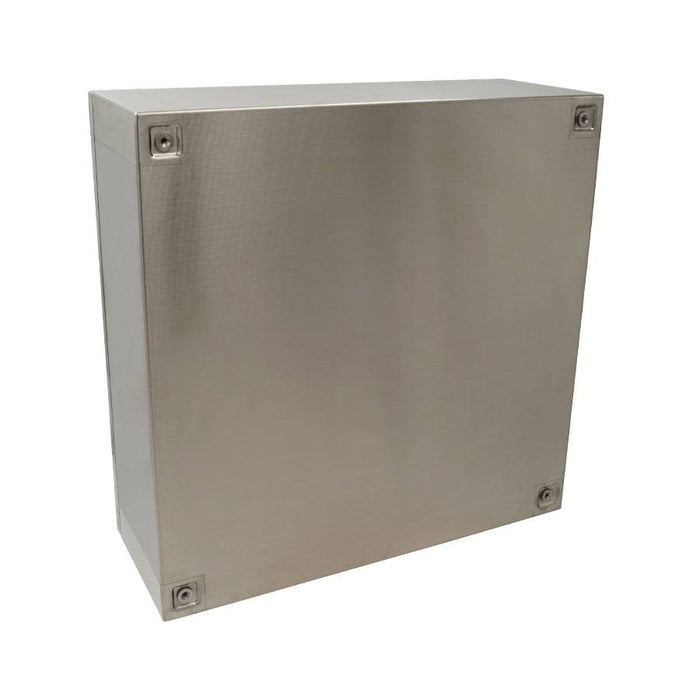

- Rear prearrangement for wall fixing with M5 blind threaded holes.
PLUS ON DEMAND FOR CUSTOMIZATION (Contact Us):
Material: AISI 316L (Wnr 1.4404)
Drilling: as per drawings on body and door.
Dimensions: specials
Seals: silicone

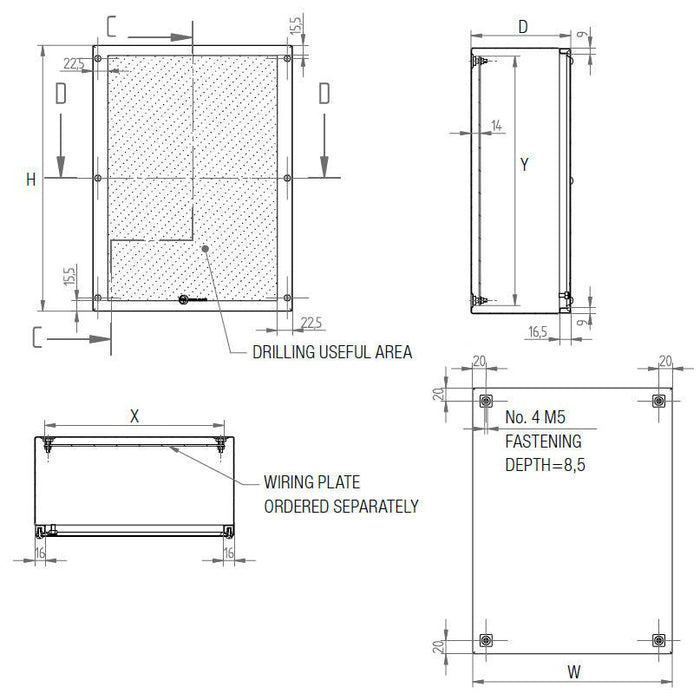

Dimensions & Features:
Nominal Dimensions: 16x16x6" (WxHxD)
| L: | 15.7" (400mm) |
| H: | 15.7" (400mm) |
| P: | 5.91" (150mm) |
| X: | 14.6" (370mm) |
| Y: | 14.8" (375mm) |
| Points of Closure: | 6 |
| Fixing Points: | 4 |
| Certifications: |  |
