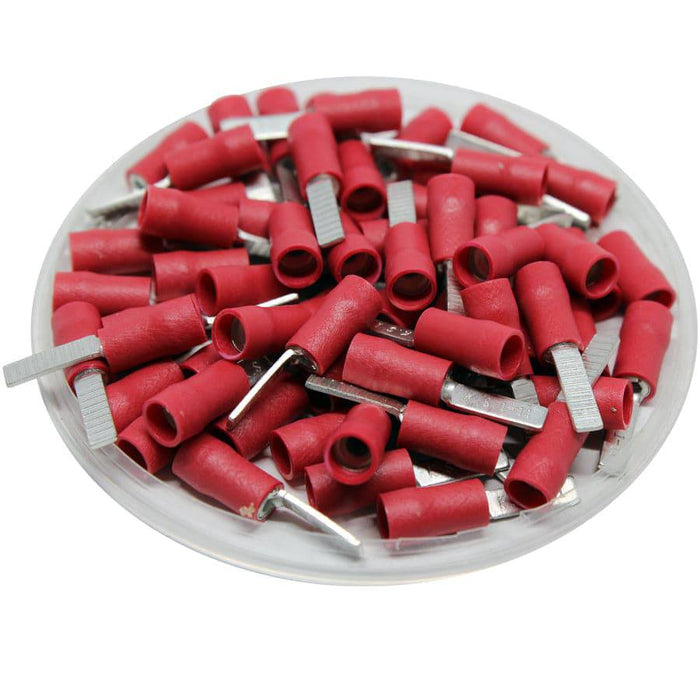

DBD1-11 - Vinyl Insulated Flat Blade Terminal - Double Crimp - 22-16 AWG - Red

Original price $10.52 - Original price $10.52
Original price
$10.52
$10.52 - $10.52
Current price $10.52
SKU DBD1-11
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.

Dimensions & Features:

Wire Range: 22-16 AWG
Color: Red
T: 0.8mm (0.03")
L: 21.3mm (0.84")
F: 11mm (0.43")
E: 10.5mm (0.41")
W: 3.0mm (0.12")
D: 4.2mm (0.17")
D1: 1.7mm (0.07")
Terminal Material: Tin-Plated Copper
Insulation Material: Vinyl
Maximum Rating: 105°C - 600 Volts
Max Electrical Rating: 18AMP
UL Recognized: Yes
RoHS Compliant: Yes
CE Certified: Yes
