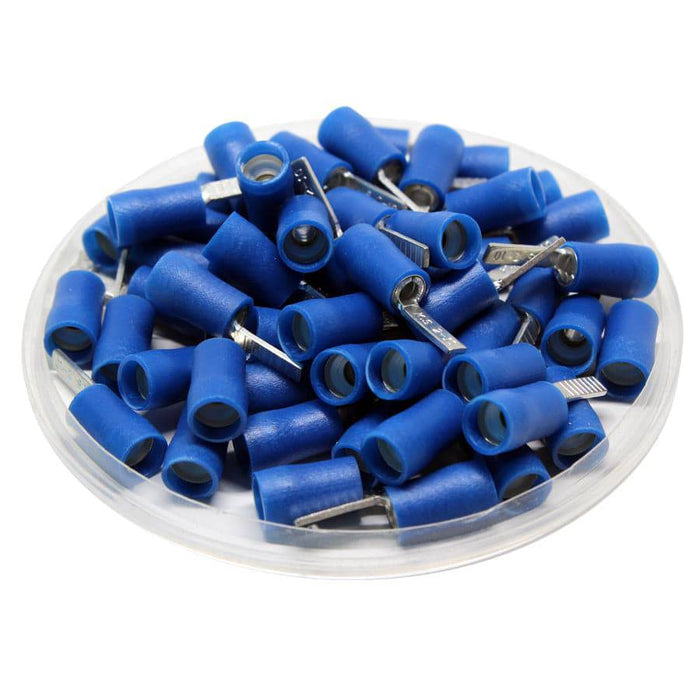

DBD2-10 - Vinyl Insulated Flat Blade Terminal - Double Crimp - 16-14 AWG - Blue
Original price
$11.87
-
Original price
$11.87
Original price
$11.87
$11.87
-
$11.87
Current price
$11.87
SKU DBD2-10
Availability:
in stock, ready to be shipped
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
Wire Range: | 16-14 AWG |
Color: | Blue |
T: | 0.8mm (0.03") |
L: | 20.3mm (0.80") |
F: | 10mm (0.39") |
E: | 10.5mm (0.41") |
W: | 2.4mm (0.09") |
D: | 5.0mm (0.20") |
D1: | 2.3mm (0.09") |
Terminal Material: | Tin-Plated Copper |
Insulation Material: | Vinyl |
Maximum Rating: | 105°C - 600 Volts |
Max Electrical Rating: | 30AMP |
UL Recognized: | Yes |
RoHS Compliant: | Yes |
CE Certified: | Yes |
