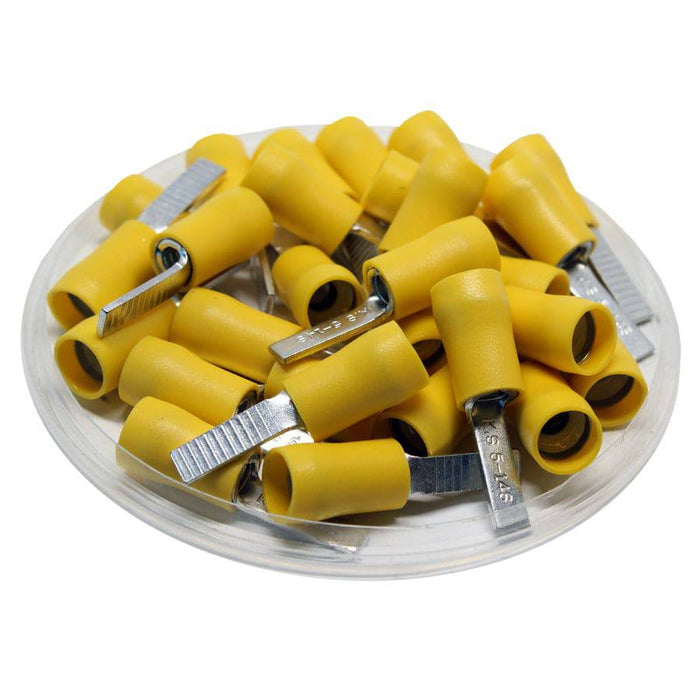

DBDS5-14 - Vinyl Insulated Flat Blade Terminal - Double Crimp - 12-10 AWG - Yellow

Original price $27.20 - Original price $27.20
Original price
$27.20
$27.20 - $27.20
Current price $27.20
SKU DBDS5-14
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.

Dimensions & Features:

Wire Range: 12-10 AWG
Color: Yellow
T: 1.0mm (0.03")
L: 27mm (1.06")
F: 14mm (0.55")
E: 13mm (0.51")
W: 4.0mm (0.16")
D: 6.4mm (0.25")
D1: 3.4mm (0.13")
Terminal Material: Tin-Plated Copper
Insulation Material: Vinyl
Maximum Rating: 105°C - 600 Volts
Max Electrical Rating: 50AMP
UL Recognized: Yes
RoHS Compliant: Yes
CE Certified: Yes
