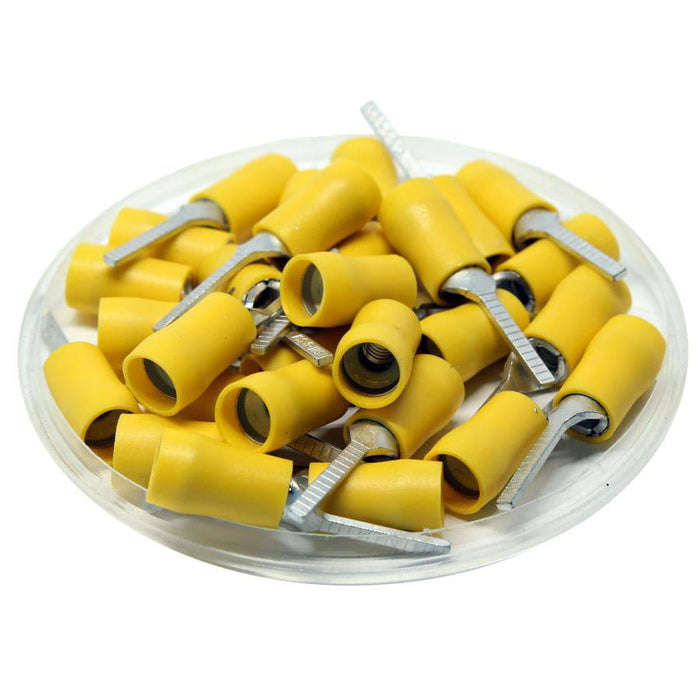

DBDS5-18 - Vinyl Insulated Flat Blade Terminal - Double Crimp - 12-10 AWG - Yellow
Original price
$28.04
-
Original price
$28.04
Original price
$28.04
$28.04
-
$28.04
Current price
$28.04
SKU DBDS5-18
Availability:
in stock, ready to be shipped
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 12-10AWG |
| Terminal Material: | Tin-Plated Copper |
| Insualtion Material: | Vinyl |
| Color: | Yellow |
| Maximum Rating: | 600 Volts - 105oC |
| Max Electrical Rating: | 50AMP |
| T: | 1.0mm (0.03") |
| L: | 31.0mm (1.22") |
| F: | 18.0mm (0.71") |
| E: | 13.0mm (0.51") |
| W: | 2.0mm (0.08") |
| D: | 6.4mm (0.25") |
| D1: | 3.4mm (0.13") |
| UL Recognized: | Yes |
| RoHS Compliant: | Yes |
| CE Certified: | Yes |
