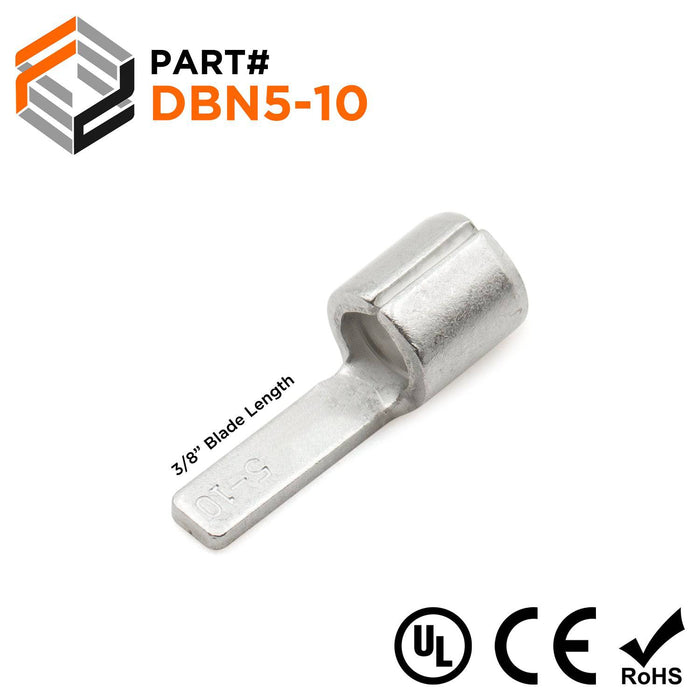

12 to 10 AWG Non Insulated Blade Terminals, 3/8" Blade Length x 0.110" Width, 100 Pieces - DBNB5-10

Original price $15.20 - Original price $15.20
Original price
$15.20
$15.20 - $15.20
Current price $15.20
SKU DBNB5-10
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces

NON INSULATED BLADE TERMINALS

Non Insulated Blade Terminals (also known as flat blade terminals) are wire connections that use a flat conductive blade which is inserted into a blade receptacle. They are designed to match interconnect requirements for components such as timers, valves, relays, mechanical switches, and wire-to-wire connections.

Formerly sold as part #: FBU-510.

DIMENSIONS & FEATURES:

Wire Size: 12 to 10 AWG
W: 0.110" (2.8mm)
F: 0.394" (10.0mm)
L: 0.630" (16.0mm)
E: 0.236" (6.0mm)
D: 0.220" (5.6mm)
D1: 0.134" (3.4mm)
T: 0.039" (1.0mm)
Temperature Rating: 221°F (105°C)
Material: Tin-Plated Copper
CE Certified: Yes
RoHS Compliant: Yes
UL Approved: Yes
Max Electrical Current (see below):
12 AWG: 35A
10 AWG: 50A



DRAWING:


Cross References

Cross Reference Parts:
None


Documents

Click to view product spec sheet:
