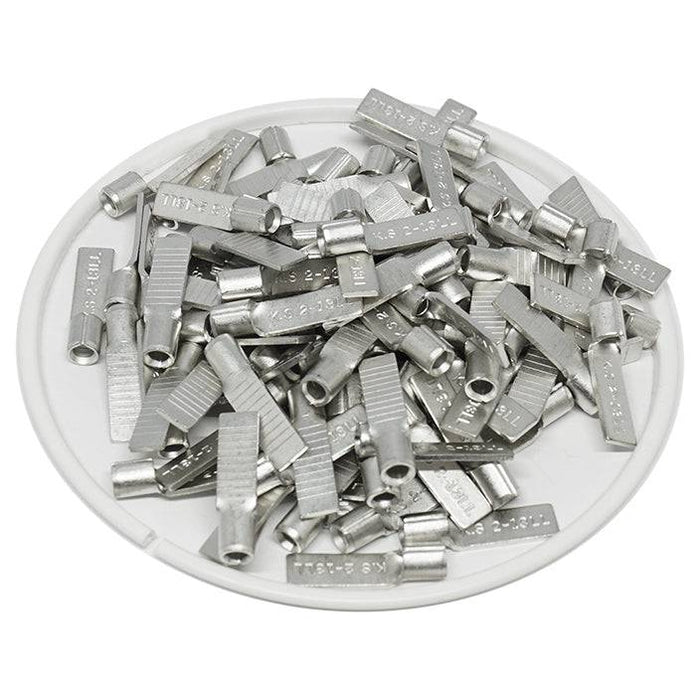

16 to 14 AWG Non Insulated Blade Terminals, 1/2" Blade Length x 3/16" Width, 100 Pieces - DBNBLL2-13
Original price
$10.36
-
Original price
$10.36
Original price
$10.36
$10.36
-
$10.36
Current price
$10.36
SKU DBNBLL2-13
Availability:
in stock, ready to be shipped
NON INSULATED BLADE TERMINALS
Non Insulated Blade Terminals (also known as flat blade terminals) are wire connections that use a flat conductive blade which is inserted into a blade receptacle. They are designed to match interconnect requirements for components such as timers, valves, relays, mechanical switches, and wire-to-wire connections.
Formerly sold as part #: FBU-213LL.
DIMENSIONS & FEATURES:
| Wire Size: | 16 to 14 AWG |
| W: | 0.177" (4.5mm) |
| F: | 0.512" (13.0mm) |
| L: | 0.709" (18.0mm) |
| E: | 0.189" (4.8mm) |
| D: | 0.161" (4.1mm) |
| D1: | 0.091" (2.3mm) |
| T: | 0.031" (0.8mm) |
| Temperature Rating: |
221°F (105°C) |
| Material: | Tin-Plated Copper |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| UL Approved: | Yes |
| Max Electrical Current (see below): | |
| 16 AWG: | 18A |
| 14 AWG: | 30A |
DRAWING:
Cross References
Cross Reference Parts:
Cembre: S2.5-PP12
Documents
Click to view product spec sheet:
