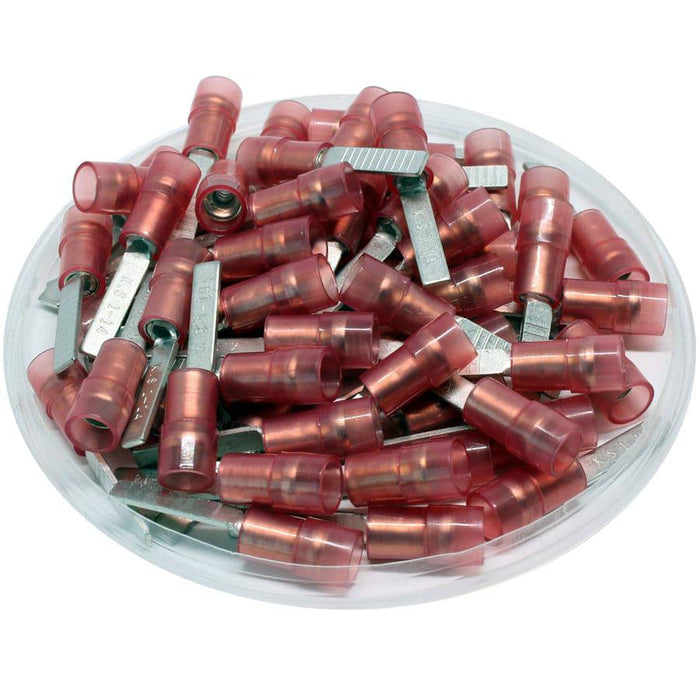

DBNYD1-14 - Nylon Insulated Flat Blade Terminal - Double Crimp - 22-16 AWG - Red
Original price
$10.76
-
Original price
$10.76
Original price
$10.76
$10.76
-
$10.76
Current price
$10.76
SKU DBNYD1-14
Availability:
in stock, ready to be shipped
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.
Dimensions & Features:
Product Drawing:
None
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/Pdf.png?v=1562095635)
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/Youtube_Logo_100x100.png?v=1578686161)
Dimensions & Features:
Wire Range: | 22-16AWG |
Terminal Material: | Tin-Plated Copper |
Insualtion Material: | Nylon |
Color: | Red |
Maximum Rating: | 600 Volts - 105oC |
Max Electrical Rating: | 18AMP |
T: | 0.75mm (0.03") |
L: | 24.8mm (0.98") |
F: | 14.0mm (0.55") |
E: | 11.0mm (0.43") |
W: | 3.0mm (0.12") |
D: | 4.0mm (0.16") |
D1: | 1.7mm (0.07") |
UL Recognized: | Yes |
RoHS Compliant: | Yes |
CE Certified: | Yes |
