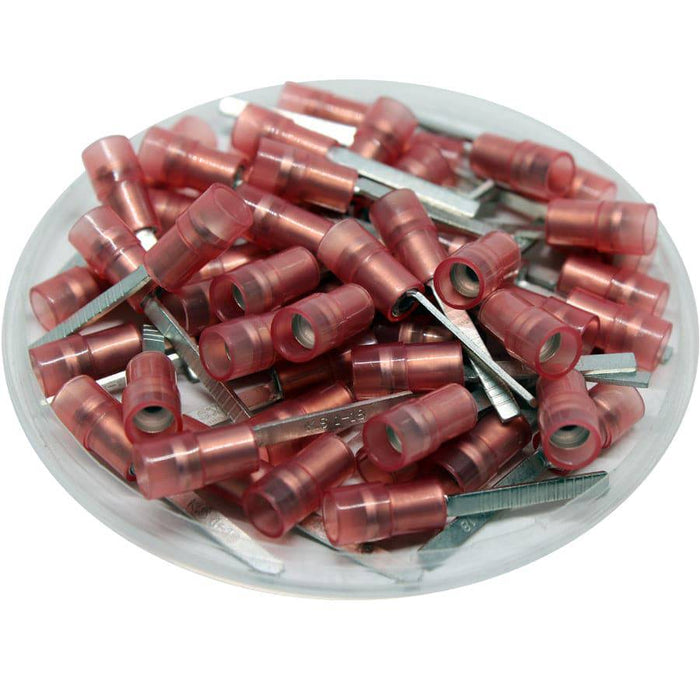

DBNYD1-18 - Nylon Insulated Flat Blade Terminal - Double Crimp - 22-16 AWG - Red

Original price $10.79 - Original price $10.79
Original price
$10.79
$10.79 - $10.79
Current price $10.79
SKU DBNYD1-18
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
true
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.

Dimensions & Features:

Wire Range: 22-16AWG
Terminal Material: Tin-Plated Copper
Insualtion Material: Nylon
Color: Red
Maximum Rating: 600 Volts - 105oC
Max Electrical Rating: 18AMP
T: 0.75mm (0.03")
L: 28.8mm (1.10")
F: 18.0mm (0.55")
E: 11.0mm (0.43")
W: 2.2mm (0.09")
D: 4.0mm (0.16")
D1: 1.7mm (0.07")
UL Recognized: Yes
RoHS Compliant: Yes
CE Certified: Yes

Product Drawing:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
