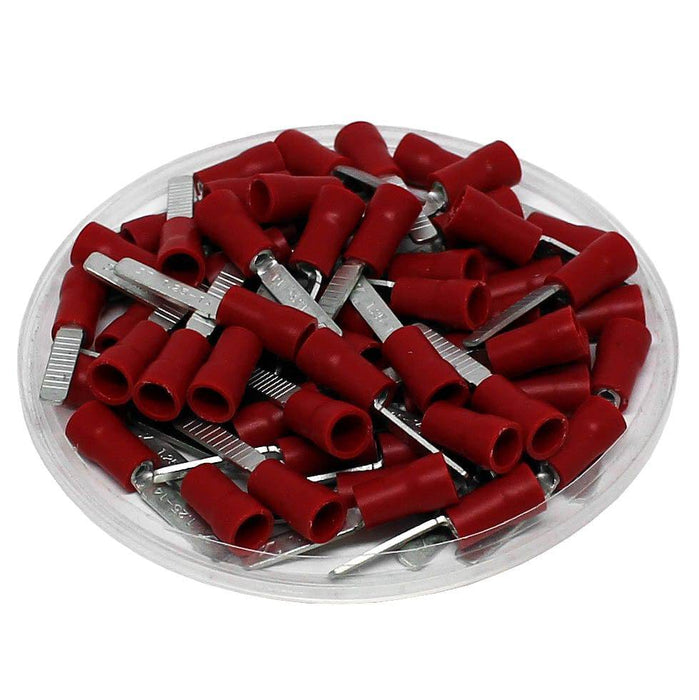

22 to 16 AWG Vinyl Insulated Flat Blade Terminals, Butted Seam, UL Approved, 100 Pieces - DBV1-13
Original price
$7.80
-
Original price
$7.80
Original price
$7.80
$7.80
-
$7.80
Current price
$7.80
SKU DBV1-13
Availability:
in stock, ready to be shipped
VINYL INSULATED FLAT BLADE TERMINALS
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as:
- Timers
- Motors
- Valves
- Relays
- Mechanical Switches
- Wire to Wire Harnesses
Formerly sold as FBI-113.
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| T: | 0.8mm (0.03") |
| L: | 22.8mm (0.90") |
| F: | 13mm (0.51") |
| E: | 10mm (0.39") |
| W: | 3mm (0.12") |
| D: | 4mm (0.16") |
| D1: | 1.7mm (0.07") |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 18AMP |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Color: | Red |
| Seam: | Butted |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
