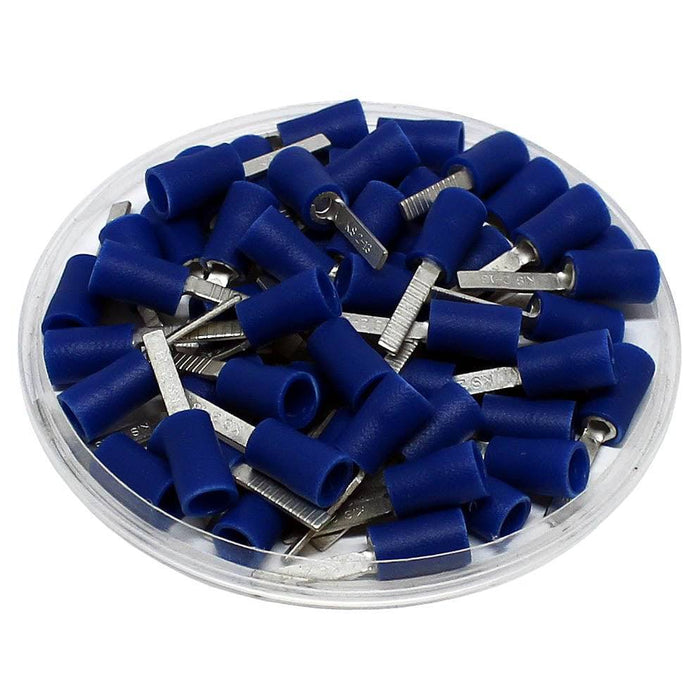

DBV2-13 (FBI-213) - Insulated Flat Blade Terminals

$8.56
SKU DBV2-13

PRODUCT DESCRIPTION

A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.

DIMENSIONS AND FEATURES
T: 0.8mm (0.031") Wire Range: 16-14 AWG
L: 22.8mm (0.90") Max Electrical Rating: 105oC
F: 13mm (0.51") Max Electrical Voltage: 600 Volts
E: 11.5mm (0.45") Max Electrical Current: 30AMP
W: 2.4mm (0.09") Material: Tin-Plated Copper
D: 4.5mm (0.18") Insulation: Vinyl
D1: 2.3mm (0.09") UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

TECHNICAL DRAWING

Cross Reference Parts:

Panduit: DV14-145M-C

Click to view data sheet
