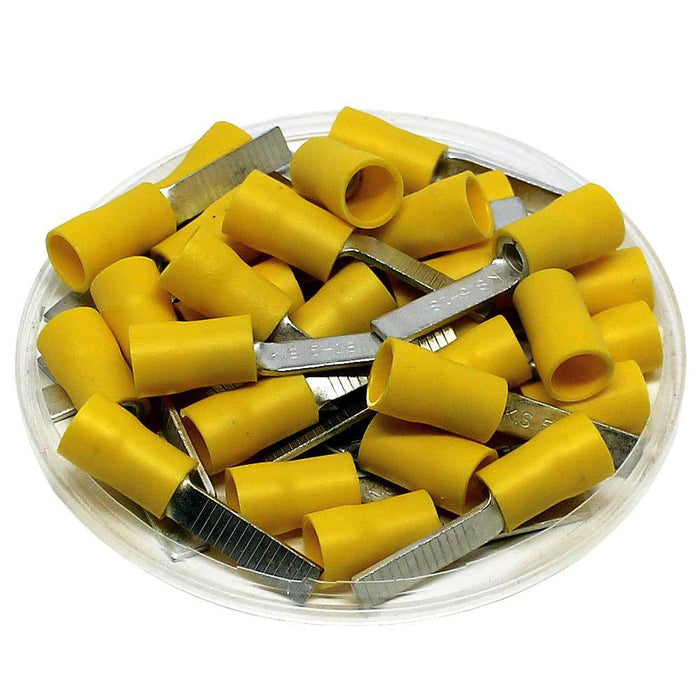

12 to 10 AWG Vinyl Insulated Flat Blade Terminals, Butted Seam, UL Approved, 50 Pieces - DBV5-18

Original price $7.35 - Original price $7.35
Original price
$7.35
$7.35 - $7.35
Current price $7.35
SKU DBV5-18
Availability:
in stock, ready to be shipped
Pack Quantity: 50 Pieces
true

VINYL INSULATED FLAT BLADE TERMINALS

A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as:

  • Timers
  • Motors
  • Valves
  • Relays
  • Mechanical Switches
  • Wire to Wire Harnesses


DIMENSIONS & FEATURES:

Wire Size: 12-10 AWG
T: 1mm (0.04")
L: 31mm (1.22")
F: 18mm (0.55")
E: 13mm (0.51")
W: 4.5mm (0.18")
D: 6.4mm (0.25")
D1: 3.4mm (0.13")
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 50AMP
Terminal Material: Tin-Plated Copper
Insulation: Vinyl
Color: Yellow
Seam: Butted
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes


Product Drawing:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
