16-14 AWG Ring Terminals, 5/16" Stud, Tin Plated Brass, Open Barrel, 100 Pieces - DJ431-8C-T
Original price
$10.45
-
Original price
$10.45
Original price
$10.45
$10.45
-
$10.45
Current price
$10.45
SKU DJ431-8C-T
Availability:
in stock, ready to be shipped
Open barrel terminals have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Stud Size: | 5/16" Stud (8.5mm) |
| W: | 13.8mm (0.54") |
| D: | 8.5mm (0.33") |
| E: | 17mm (0.67") |
| Material: | Tin Plated Brass |
| Surface Treatment: | Standard Chemical Treatment |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |

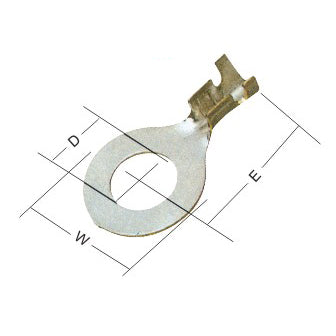

Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
