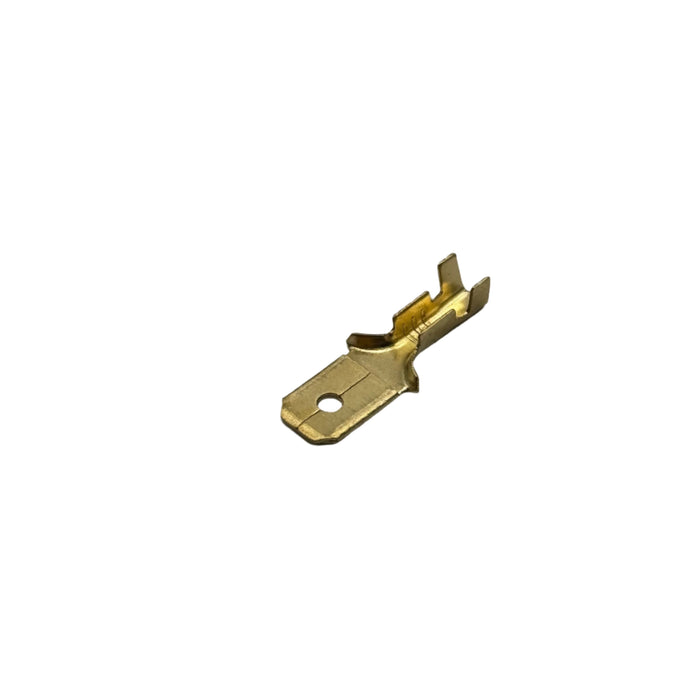

18 to 16 AWG Male Quick Disconnects, Brass, 6.3 NEMA Tab, 100 Pieces - DJ610-6.3x0.8B

Original price $3.10 - Original price $3.10
Original price
$3.10
$3.10 - $3.10
Current price $3.10
SKU DJ610-6.3x0.8B
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces

OPEN BARREL STYLE QUICK DISCONNECTS

Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.

DIMENSIONS & FEATURES:

Wire Size: 18 to 16 AWG
NEMA Tab: 6.3 x 0.8mm (0.25" x 0.031")
L: 20mm (0.79")
W: 6.35mm (0.25")
T: 0.8mm (0.031")
Material: Brass
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:



COMPARE TO THESE PARTS:
