6.3mm Tab, Quick Connect Male Solder Connectors, Tin Plated Brass, 100 pieces - DJ6110-6.3x0.8-T

Original price $4.00 - Original price $4.00
Original price
$4.00
$4.00 - $4.00
Current price $4.00
SKU DJ6110-6.3x0.8-T
Availability:
in stock, ready to be shipped
Pack Quantity: 100 pieces

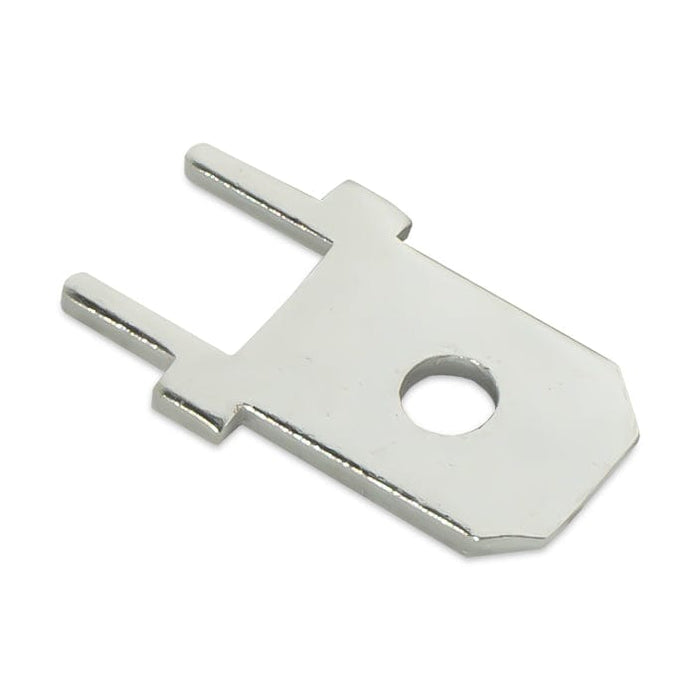

QUICK CONNECT SOLDER CONNECTORS

PCB quick connect male solder connector. The male tab fits into a female quick disconnect terminal. The solder tail attaches to your circuit board. Terminals with a built-in tab support prevent side-to-side motion during termination.

Suitable substitution to Molex #: 0197054.

DIMENSIONS & FEATURES:

NEMA Tab: 6.3 x 0.8mm (0.25" x 0.031")
L: 13mm (0.51")
W: 6.3mm (0.25")
T: 0.8mm (0.031")
Material: Tin Plated Brass
CE Certified: Yes
RoHS Compliant: Yes

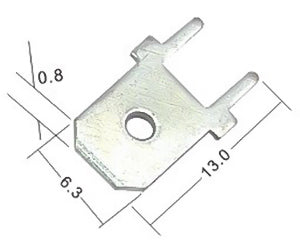

DRAWING:


Cross References

Cross Reference Parts:
Molex #: 0197054

Documents

Click to view product spec sheet:

COMPARE TO THESE PARTS:
