6.3mm Tab, Quick Connect Male Solder Connectors, Tin Plated Brass, 100 pieces - DJ6113-6.3x0.8-T
Original price
$6.90
-
Original price
$6.90
Original price
$6.90
$6.90
-
$6.90
Current price
$6.90
SKU DJ6113-6.3x0.8-T
Availability:
in stock, ready to be shipped
QUICK CONNECT SOLDER CONNECTORS
PCB quick connect male solder connector. The male tab fits into a female quick disconnect terminal. The solder tail attaches to your circuit board. Terminals with a built-in tab support prevent side-to-side motion during termination.
DIMENSIONS & FEATURES:
| NEMA Tab: | 6.3 x 0.8mm (0.25" x 0.031") |
| L: | 19.6mm (0.77") |
| W: | 6.3mm (0.25") |
| T: | 0.8mm (0.031") |
| Material: | Brass |
| Surface Treatment: | Standard Chemical Treatment |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |

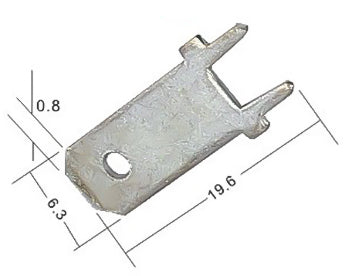

DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
