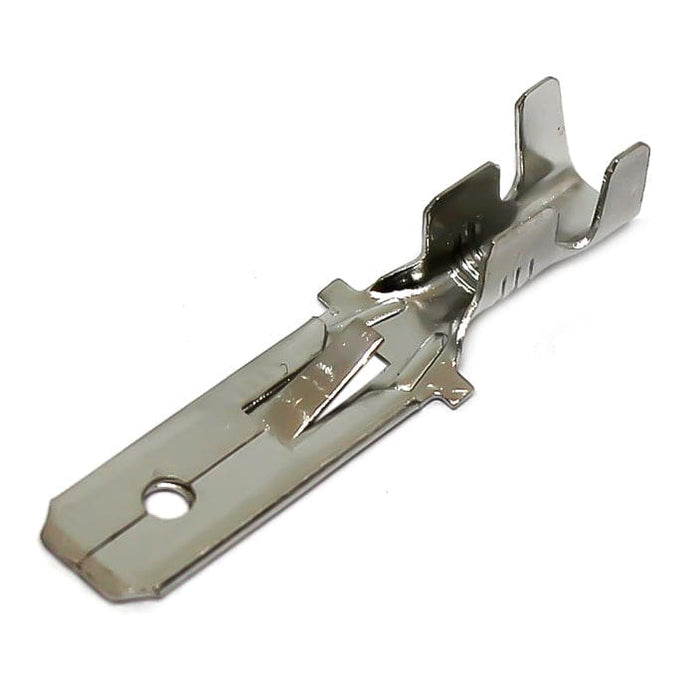

DJ612-6.3C-T - Tin Plated Brass Male Quick Disconnect - Round Tab - 16-14 AWG - 6.35x0.8mm Tab

Sold out
Original price $1.98 - Original price $1.98
Original price
$1.98
$1.98 - $1.98
Current price $1.98
SKU DJ61263C
Availability:
Out of stock

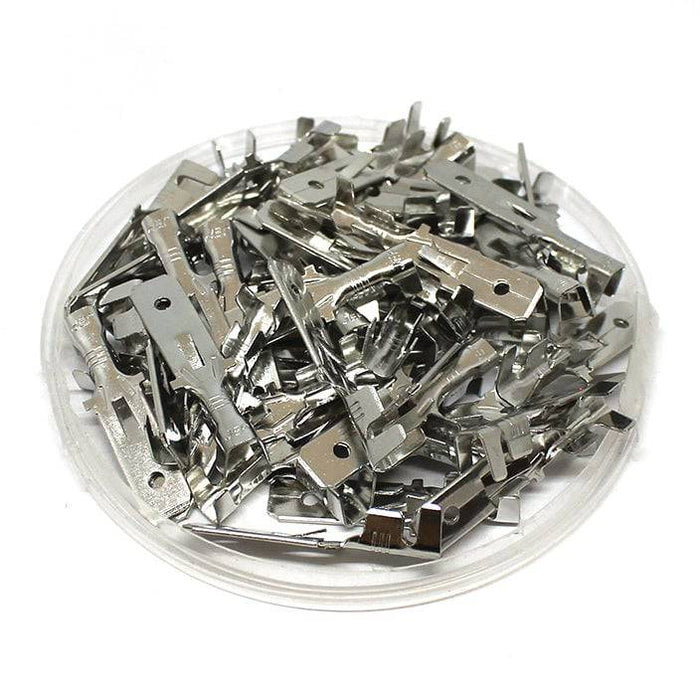

Pack Quantity: 10 Pieces
Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.

Dimensions & Features:

Wire Size: 16-14 AWG
NEMA Tab: 6.35 x 0.8mm (0.25" x 0.031")
L: 28.5mm (1.12")
W: 6.35mm (0.25")
T: 0.8mm (0.031")
Material: Brass
Surface Treatment: Standard Chemical Treatment
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
