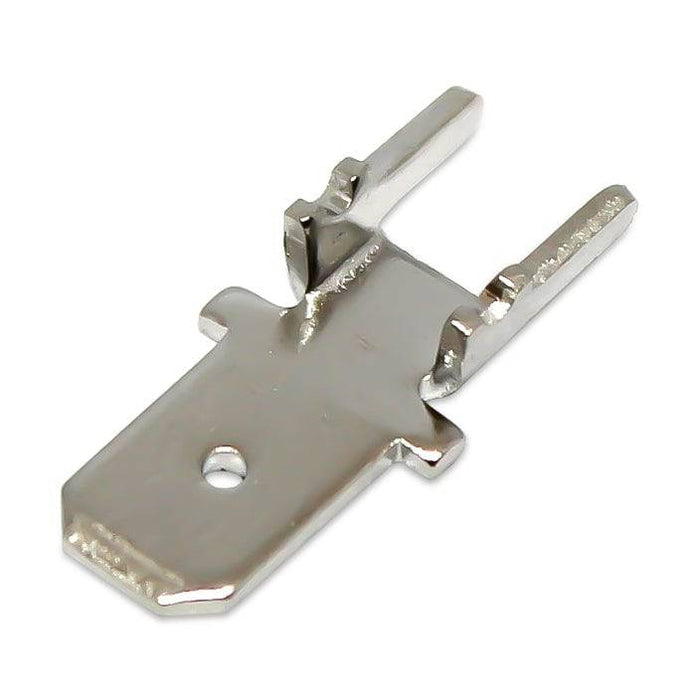

DJ615-4.8x0.8-T - Tin Plated Brass Quick Connect Male Solder Connectors, 4.8mm Tab, 100 pieces
Original price
$5.30
-
Original price
$5.30
Original price
$5.30
$5.30
-
$5.30
Current price
$5.30
SKU DJ615-4.8X0.8-T
Quantity: 100 Pieces
Availability:
in stock, ready to be shipped
QUICK CONNECT SOLDER CONNECTORS
PCB quick connect male solder connector. The male tab fits into a female quick disconnect terminal. The solder tail attaches to your circuit board. Terminals with a built-in tab support prevent side-to-side motion during termination.
DIMENSIONS & FEATURES:
| NEMA Tab: | 4.8 x 0.8mm (0.18" x 0.031") |
| L: | 11.7mm (0.48") |
| W: | 4.8mm (0.19") |
| T: | 0.8mm (0.031") |
| Material: | Brass |
| Surface Treatment: | Standard Chemical Treatment |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |

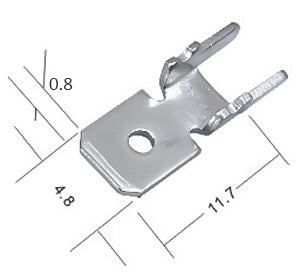

DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
