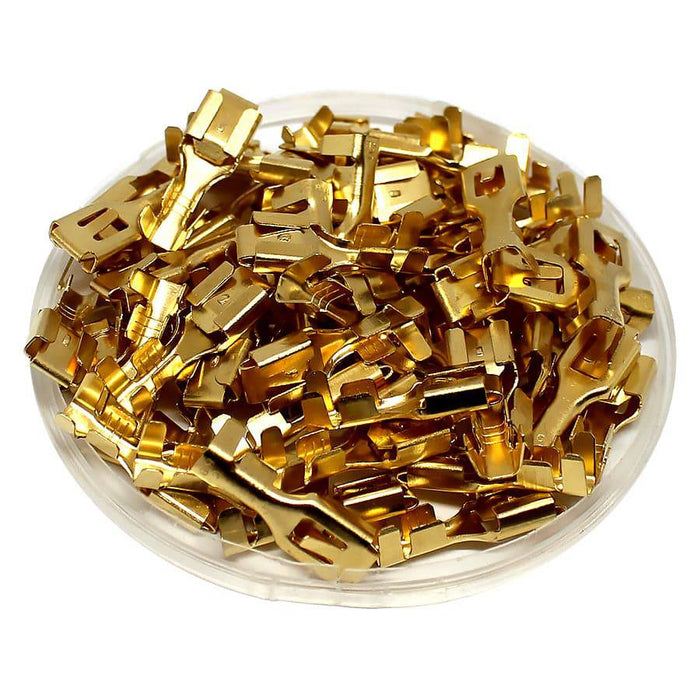

16 to 14 AWG Female Quick Disconnect, Brass, Locking Tab, 100 Pieces - DJ621-F6.3C
Original price
$5.13
-
Original price
$5.13
Original price
$5.13
$5.13
-
$5.13
Current price
$5.13
SKU DJ621-F6.3C
Availability:
in stock, ready to be shipped

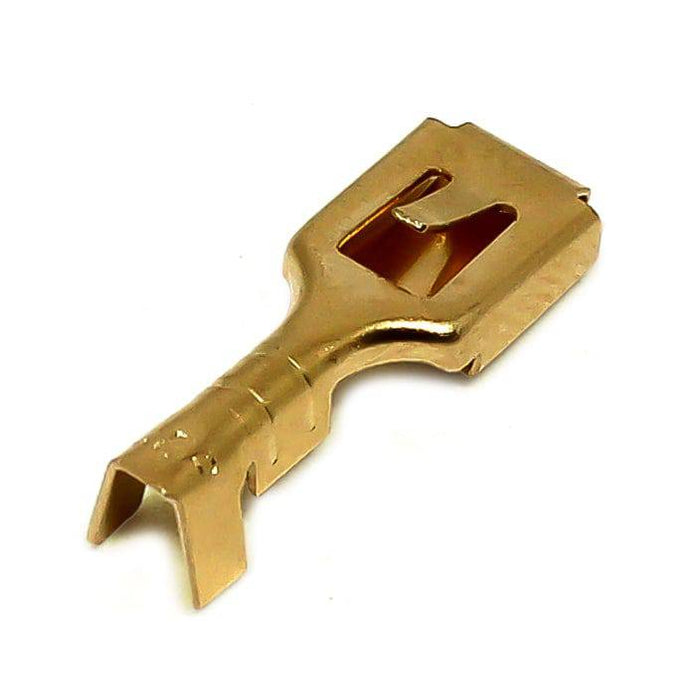

OPEN BARREL STYLE QUICK DISCONNECTS
Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.
DIMENSIONS & FEATURES:
| Wire Size: | 16 to 14 AWG |
| NEMA Tab: | 6.3 x 0.4mm (0.25" x 0.016") |
| L: | 22.5mm (0.89") |
| W: | 6.3mm (0.25") |
| Material: | Brass |
| Surface Treatment: | Standard Chemical Treatment |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
