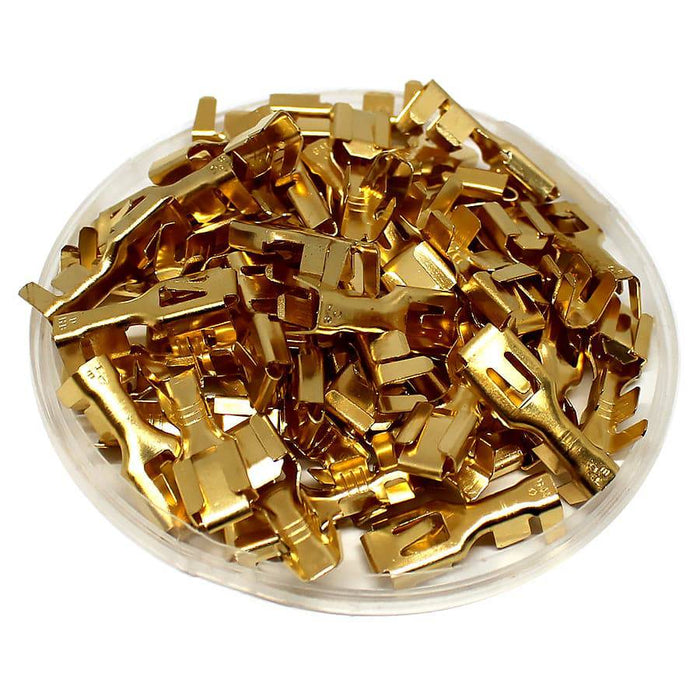

14-12 AWG Female Quick Disconnects, Brass, Lock Tab, 100 Pieces, - DJ621-B6.3D
Original price
$8.75
-
Original price
$8.75
Original price
$8.75
$8.75
-
$8.75
Current price
$8.75
SKU DJ621-B6.3D
Availability:
in stock, ready to be shipped
Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often. Formerly sold as DJ621B63D.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 14-12 AWG |
| NEMA Tab: | 6.3 x 0.4mm (0.25" x 0.016") |
| L: | 22.5mm (0.89") |
| W: | 6.3mm (0.25") |
| Material: | Brass |
| Surface Treatment: | Standard Chemical Treatment |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
