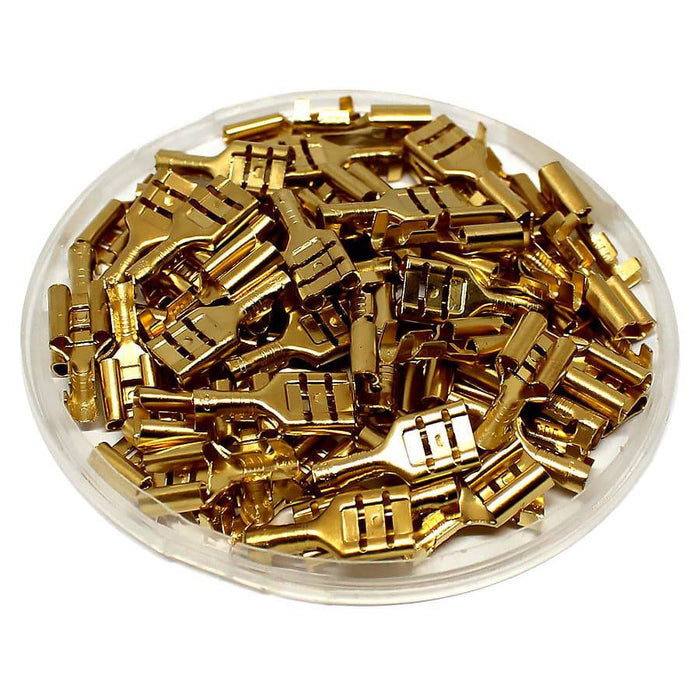

22 to 20 AWG Female Quick Disconnects, Brass, 6.3 NEMA Tab, 100 Pieces - DJ622-D6.3A

Original price $5.00 - Original price $5.00
Original price
$5.00
$5.00 - $5.00
Current price $5.00
SKU DJ622-D6.3A
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces

OPEN BARREL STYLE QUICK DISCONNECTS

Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.

DIMENSIONS & FEATURES:

Wire Size: 22 to 20 AWG
NEMA Tab: 6.3 x 0.4mm (0.25" x 0.016")
L: 19.5mm (0.77")
W: 7.7mm (0.30")
Material: Brass
Surface Treatment: Standard Chemical Treatment
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:
