DPB22N-1O/C - Illuminated Double Push Button - 2 Contact (1O/C) - 22mm - 110V

Original price $9.60 - Original price $9.60
Original price
$9.60
$9.60 - $9.60
Current price $9.60
SKU DPB22N-1OC
Availability:
in stock, ready to be shipped

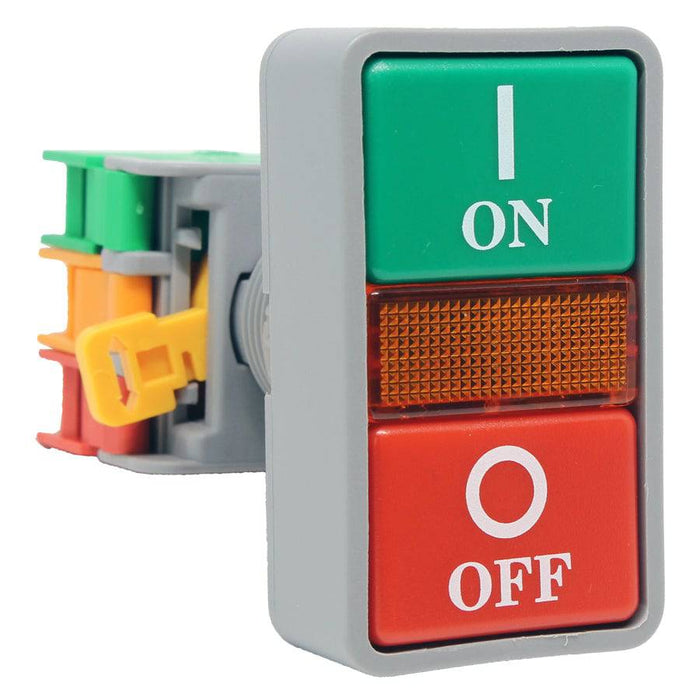

Double push buttons divide the task of opening and closing a circuit connection into two separate buttons. Each button is togglable, meaning it only needs to be pressed once and the connection will remain open until you press the opposite button. The illuminated double push buttons also feature a light located in between the two buttons. This can be used to easily identify if the connection is active (On) or inactive (Off).

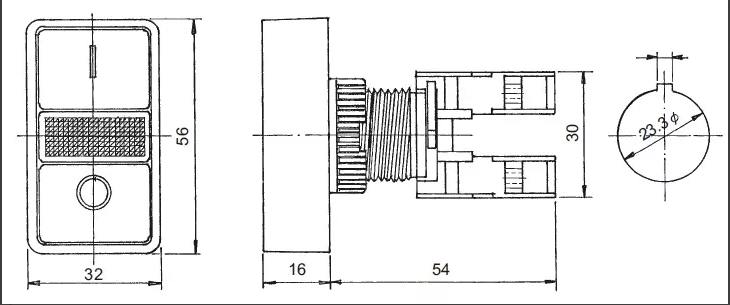

Dimensions & Features:

Mounting Hole Size: 22mm
Type: Illuminated Double Push Button
Type of Contact: 1O/C
Number of Contacts: 2
Voltage Rating: 110V
Enclosure Material: Reinforced Thermoplastic
Contact Material: Silver
Protection Degree: IP 65
Storage: -40oC to 80oC
Operating Temperature: -25o to 70oC
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Cross References

Cross Reference Parts:

None

Documents

Click to view the product spec sheet:


Videos

Click to view our YouTube channel!
