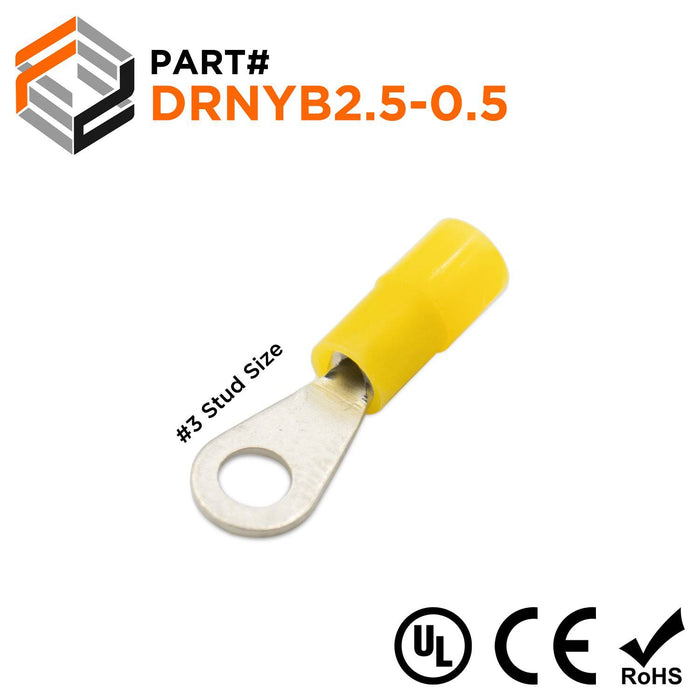

DRNYB2.5-0.5 - Nylon Ring Terminal Brazed Seam 26-22AWG Yellow 100/pk

Original price $7.20 - Original price $7.20
Original price
$7.20
$7.20 - $7.20
Current price $7.20
SKU DRNYB25-05
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces

Ring terminals offer a tight and secure connection in high vibration areas, Nylon insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.

Dimensions & Features:

Wire Range: 26-22 AWG
Stud Size: #3
Color: Yellow
T: 0.50mm (0.02")
L: 14mm (0.55")
F: 6.0mm (0.23")
E: 8.0mm (0.31")
W: 5.0mm (0.20")
D 2.3mm (0.09")
D1: 1.0mm (0.04")
D2: 2.7mm (0.11")
Terminal Material: Tin-Plated Copper
Terminal Insulation: Nylon
Max Electrical Rating: 600 Volts (105°C)
Max Electrical Current: 18 AMP
Seam: Butted
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:

Cross References

Cross Reference Parts:
None
