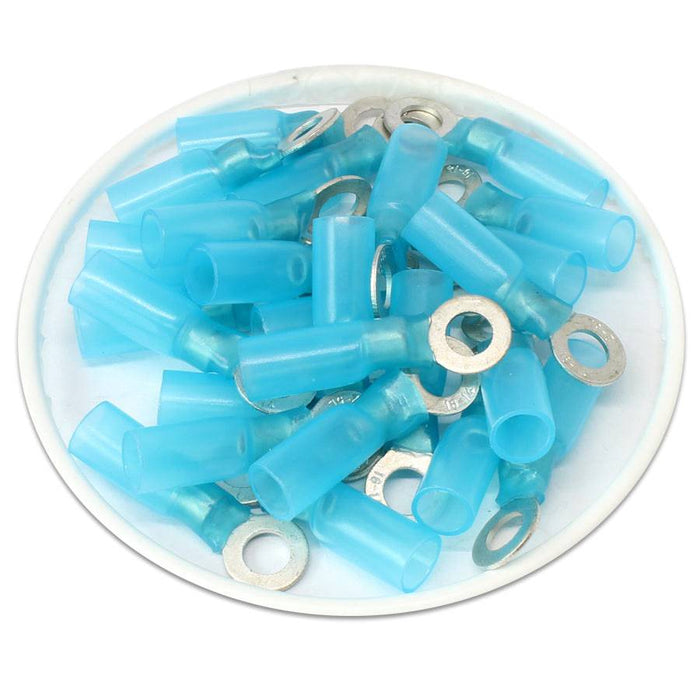

16 to 14 AWG Heat Shrink Ring Terminals, #10 Stud, Polyolefin, 25 Pieces - DSB10

Original price $3.46 - Original price $3.46
Original price
$3.46
$3.46 - $3.46
Current price $3.46
SKU DSB10
Availability:
in stock, ready to be shipped
Pack Quantity: 25 Pieces

HEAT SHRINKABLE RING TERMINALS: POLYOLEFIN

Heat shrink insulated ring terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.

DIMENSIONS & FEATURES:

Wire Size: 16 to 14 AWG
Stud Size: #10
Color: Blue
D: 5.8mm (0.23")
D1: 2.2mm (0.09")
D2: 5.3mm (0.21")
B: 9.5mm (0.37")
E: 21.0mm (0.83")
L: 30.0mm (1.18")
Terminal Material: Tin-Plated Copper
Insulation Material: Polyethylene
Temperature Rating: -67oF to 221oF (-55oC to 125oC)
UL Approved: Yes
CE Certified:  Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:

COMPARE TO THESE PARTS:
