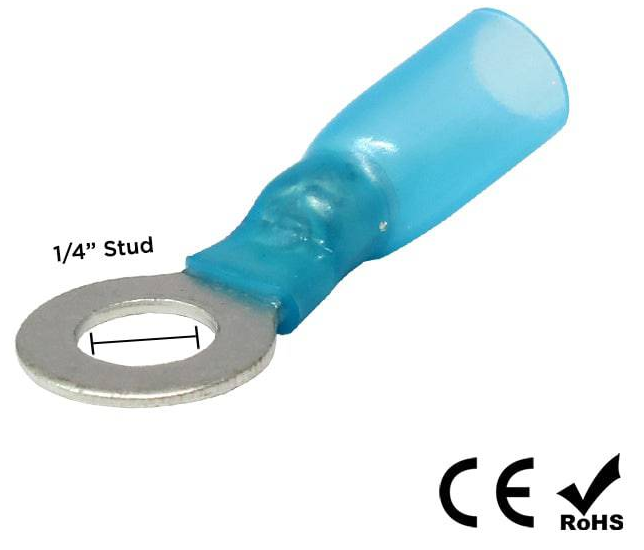

DSB14S - 16 to 14 AWG Heat Shrink Ring Terminals, Small Profile, 1/4" Stud, Polyolefin, 25 Pieces
Original price
$3.44
-
Original price
$3.44
Original price
$3.44
$3.44
-
$3.44
Current price
$3.44
SKU DSB14S
Quantity: 25 Pieces
Availability:
in stock, ready to be shipped
HEAT SHRINKABLE RING TERMINALS: POLYOLEFIN
Heat shrink insulated ring terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.
DIMENSIONS & FEATURES:
| Wire Size: | 16 to 14 AWG |
| Stud Size: | 1/4" |
| Color: | Blue |
| D: | 5.8mm (0.23") |
| D1: | 2.2mm (0.09") |
| D2: | 6.35mm (0.25") |
| B: | 9.5mm (0.374") |
| E: | 20.0mm (0.78") |
| L: | 29.0mm (1.14") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Polyethylene |
| Temperature Rating: | -67oF to 221oF (-55oC to 125oC) |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
