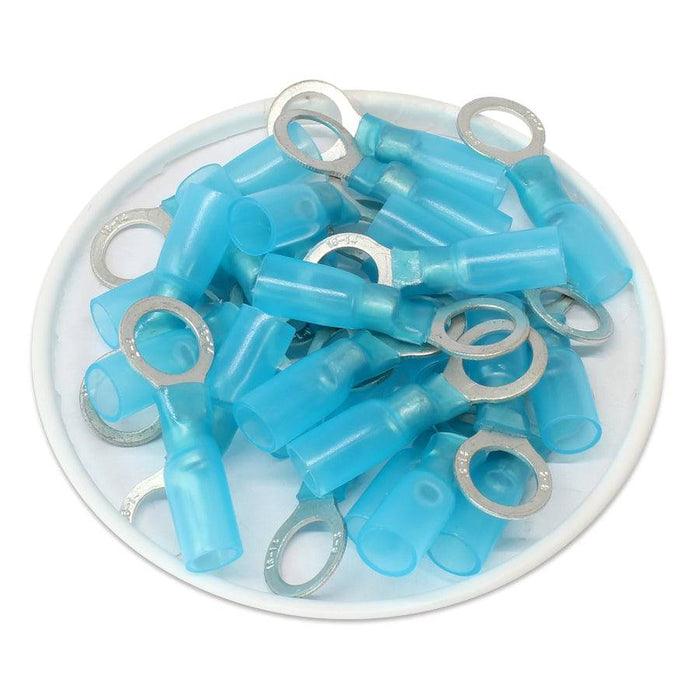

16 to 14 AWG Heat Shrink Ring Terminals, 5/16" Stud, Polyolefin, 25 Pieces - DSB516

Original price $4.30 - Original price $4.30
Original price
$4.30
$4.30 - $4.30
Current price $4.30
SKU DSB516
Availability:
in stock, ready to be shipped
Pack Quantity: 25 Pieces

HEAT SHRINKABLE RING TERMINALS: POLYOLEFIN

Heat shrink insulated ring terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.

DIMENSIONS & FEATURES:

Wire Size: 16 to 14 AWG
Stud Size: 5/16"
Color: Blue
D: 5.8mm (0.23")
D1: 2.2mm (0.09")
D2: 8.5mm (0.32")
B: 12.0mm (0.47")
E: 21.0mm (0.83")
L: 35.0mm (1.38")
Terminal Material: Tin-Plated Copper
Insulation Material: Polyethylene
Temperature Rating: -67oF to 221oF (-55oC to 125oC)
UL Approved: Yes
CE Certified:  Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:


COMPARE TO THESE PARTS:
