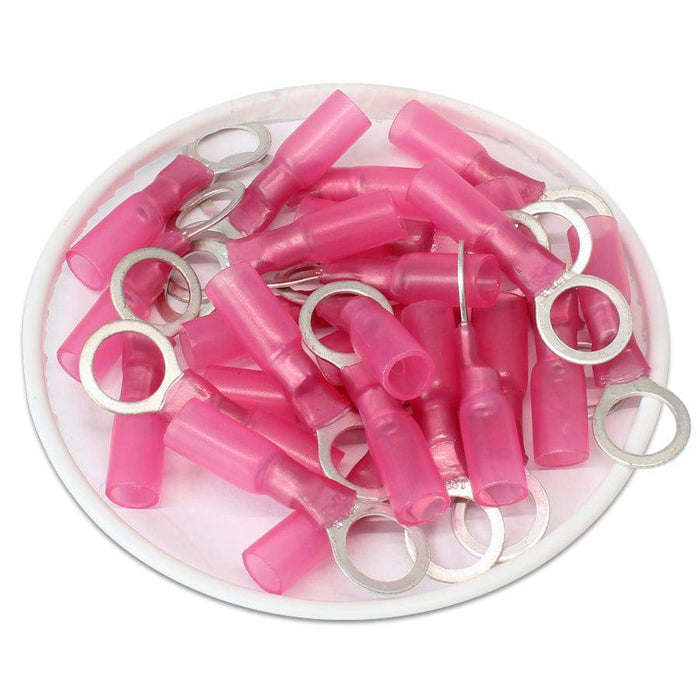

DSR516 - Polyethylene Heat Shrink Ring Term - 22-16 AWG - 5/16" Stud Red

Original price $3.70 - Original price $3.70
Original price
$3.70
$3.70 - $3.70
Current price $3.70
SKU DSR516
Availability:
in stock, ready to be shipped
Pack Quantity: 25 Pieces
Heat shrink terminals provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.

Dimensions & Features:

Wire Size: 22-16 AWG
D: 4.8mm (0.19")
D1: 1.6mm (0.06")
D2: 8.5mm (0.32")
B: 11.6mm (0.46")
E: 21.0mm (0.83")
L: 35.0mm (1.36")
Terminal Material: Tin-Plated Copper
Insulation Material: Polyethylene
Color: Red
Stud Size: 3/8"
Temperature Rating: -55oC to 120oC

Product Drawing:

Cross References

Cross Reference Parts:
None:
