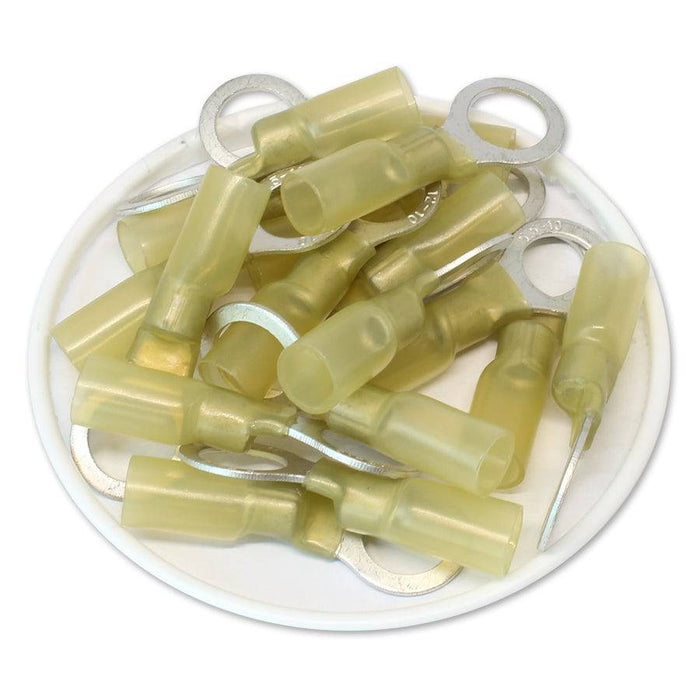

12 to 10 AWG Heat Shrink Ring Terminals, 5/16" Stud, Polyolefin, 25 Pieces - DSY516

Original price $7.06 - Original price $7.06
Original price
$7.06
$7.06 - $7.06
Current price $7.06
SKU DSY516
Availability:
in stock, ready to be shipped
Pack Quantity: 25 Pieces

HEAT SHRINKABLE RING TERMINALS: POLYOLEFIN

Heat shrink insulated ring terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.

DIMENSIONS & FEATURES:

Wire Size: 12 to 10 AWG
Stud Size: 5/16"
Color: Yellow
D: 6.8mm (0.27")
D1: 3.4mm (0.13")
D2: 8.5mm (0.33")
B: 15.0mm (0.59")
E: 25.0mm (0.98")
L: 39.0mm (1.54")
Terminal Material: Tin-Plated Copper
Insulation Material: Polyethylene
Max Electrical Rating: 600 Volts
Temperature Rating: -67oF to 221oF (-55oC to 125oC)
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
