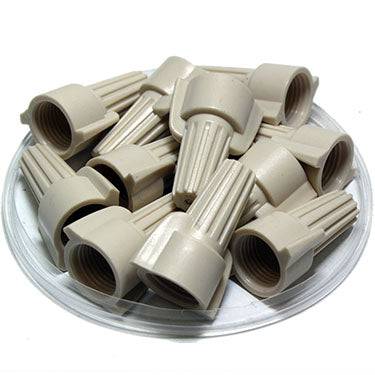

FD12DWN - Dbl Wing Wire Nut Connectors 22-08AWG Tan

Pack Quantity
Specifications Wire Combinations
Color: Tan
D: 17.8mm (.70") Mnimum: Maximum
D1: 10mm (.39") 3 22AWG 3 10AWG
L: 27.7mm (1.09")
Max. Voltage: 600
Strip Length - Stranded: 1/2" (12.6mm)
Strip Length - Solid: 1/2" (12.6mm)
 - Tough, thermoplastic shelled wire nuts shield against environmental extremes
Resists chemical action from hydrocarbons, diluted acid or alkaline solutions
 - Flame-retardant properties resist heat distortion up to 105
°C (221°F)
Copper to copper connections only
