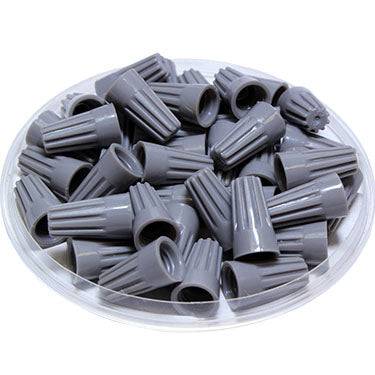

FD1WN - Twist-On Wire Cap Connector - 22-16 AWG - Gray
Original price
$2.24
-
Original price
$2.24
Original price
$2.24
$2.24
-
$2.24
Current price
$2.24
SKU FD1WN
Availability:
in stock, ready to be shipped
Twist-on wire connectors are a type of electrical connector used to fasten two or more low-voltage conductors. They're typically installed by hand by being twisted onto the stripped ends of wires. The wires are then drawn into the connector's metal insert and twisted and squeezed together inside. Twist-on connectors are not often used on wire gauges larger than 10 AWG because the solid wires are too stiff to be reliably connected with this method.
Dimensions & Features:
Wire Combinations:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Gray |
| L: | 15mm (0.59") |
| D: | 8.5mm (0.33") |
| D1: |
6.7mm (0.26") |
| Strip Length (Stranded): | 5/16" (8mm) |
| Strip Length (Solid): | 1/4" (6.4mm) |
| Max Voltage: | 300V |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Wire Combinations:
| One 14 AWG | One or Two 16 AWG |
| One 18 AWG (Stranded) | Two or Three 18 AWG |
| Two to Four 20 AWG | Two 22 AWG (Stranded) |
| Three or Four 22 AWG | Five 22 AWG (Solid) |
Product Drawing:
