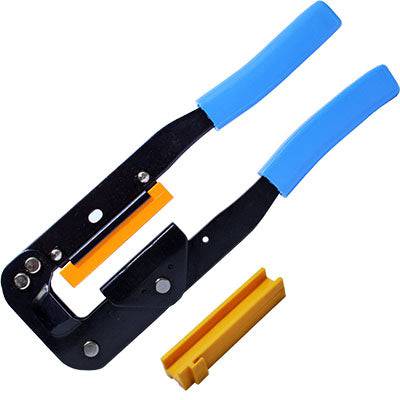

FD214D - Flat Ribbon Crimping Tool


Flat Ribbon Crimping Tool

Product Overview

Sturdy  tool with steel frame construction and cushioned handle grips. Great for short run projects. It crimps IDC-type connectors ranging in size from 0.24" to 1.08" (6.00mm to 27.5mm)

Operating Instructions

  • Insert flat cable into IDC connector
  • Place assembled IDC connector onto yellow plastic adaptor.
  • Depending on the height and width of connector, crimping tool can be used either with of without the yellow adaptor.  Adaptor can be used with:
    • 6mm (0.236") wide connectors;
    • 10mm (0.393") wide connectors.
  • Squeeze handles until the connector is crimped.
