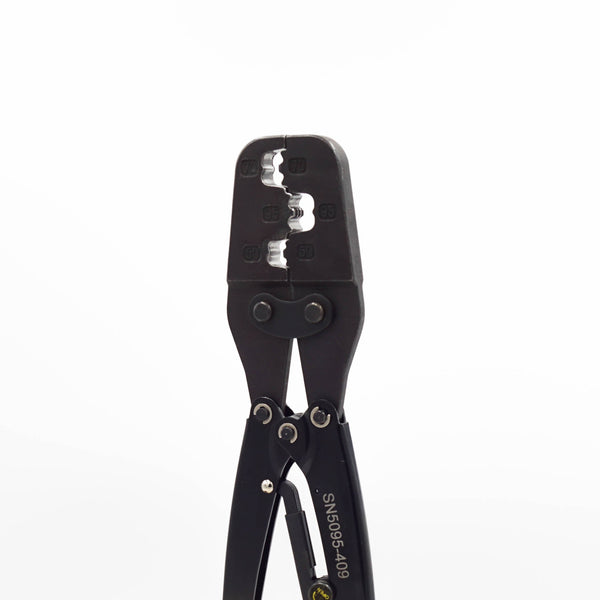

FD5095 - Wire Ferrule Crimping Tool - 50-95mm2 (1AWG to 3/O)

$91.00
SKU FD5095

This heavy duty tool features a 12" handle for added leverage when crimping larger ferrules in the 1 AWG to 3/O crimping range. The tool has three crimping slots as listed below:

  • Slot "70" = 2/O Ferrules
  • Slot "95" = 3/O Ferrules
  • Slot "50" = 1 AWG & 1/O ferrules. *1/O Ferrules will not seat fully inside crimping slot. However, the tool does perform an excellent crimp for these ferrules.*

Dimensions & Features:

Insulated, Non-insulated, Twin Ferrules: 1AWG to 3/O (50.00 to 95.00mm2)
Crimping Slots: 3 (1AWG - 1/O, 2/O, and 3/O)
Crimping Mechanism: Ratchet
Crimping Profile: Trapezoidal
Tool Material: Hardened Steel
Handle Material: High Impact Plastic
RoHS Compliant: Yes
