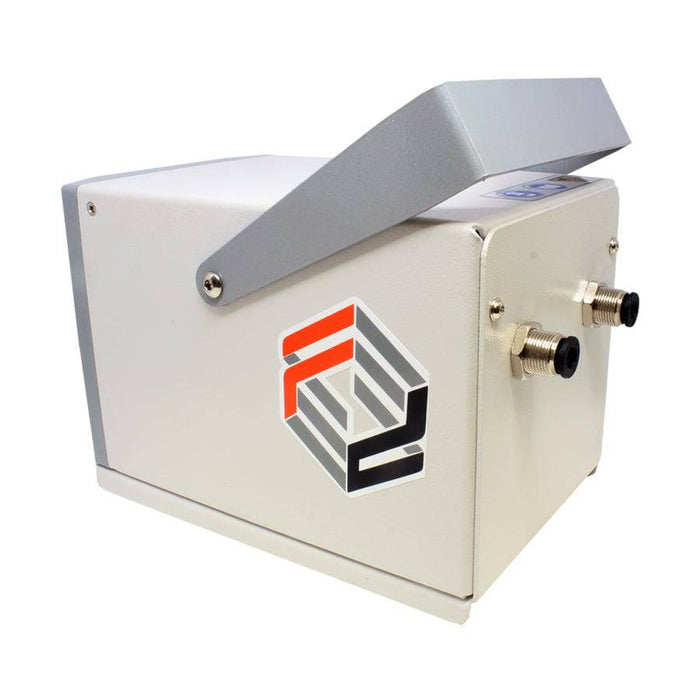

FD64K Pneumatic Press for Wire Ferrules - Square Crimping Profile


Pneumatic Crimping Press With Square Crimping Head - FD64K

  • "Plug 'n Play" Pneumatic Press with square crimping head for ferrules. Quick and easy to set up, easier to operate.
  • Crimping Range:
    • Wire Ferrules: .25mm2 to 6.00mm2 (24 to 10AWG)
  • Output Force: 13.5kN (3,034 pound-force)
  • Recommended Operating Pressure: 80-100psi
  • Crimping Press Dimensions: 260x120x140mm (10.2x4.7x5.5")
  • Weight: 6 Kilos (12.2 lbs)

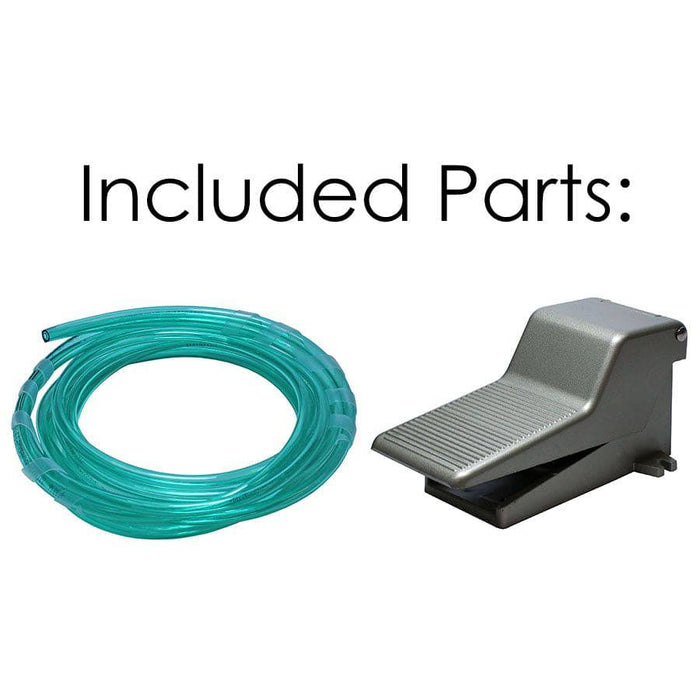

  • INCLUDES: Foot pedal, tubing, operating manual and air source quick disconnect attachment

How to install and operate the FD64K

  1. Insert tubing in the designated ports, as marked on press and foot pedal
  2. Set air pressure to 80-100PSI
  3. Rotate knob clockwise or counterclockwise to decrease/increase opening size of crimping head.
  4. Start crimping
